Build your own golf simulator with any CX camera systems

All data can be verified with real photographic evidence after each shot.

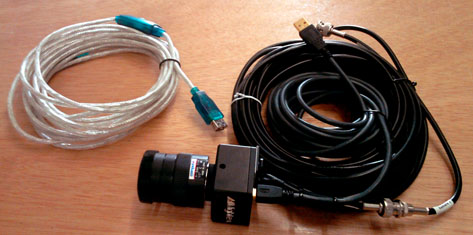

All CX camera systems include all cables, lighting and golf game software

CX4 and CX6 systems additionally include our multi-camera verified PC

Camera systems from $1,699 !

F series Full scale systems from just $10,995 !

GSA Golf - Hi-end golf simulators without the hi-end price




All data can be verified with real photographic evidence after each shot !

Note that this feature is unique to only GSA Golf systems. No other golf simulators on the market can provide this.

With all other golf simulator systems on the market, the player is forced to take the manufacturer's word that the data captured is correct.

There is no way for the player to verify that their measurements are in anyway correct.

All CX and CTS camera systems run with all these golf course software versions

Important ! Note that camera systems require that two areas within the enclosure be dark and non-reflective

and that there should not be too much ambient light getting into the enclosure. ie daylight windows near the enclosure and / or other electric lights

Also note that PC's may have to have an additional dedicated USB channel card(s) added if using more than 2 or 3 cameras.

These cards cost around $85. Most good PC's are okay with 2 or 3 cameras but anymore cameras will most probably require this upgrade

In addition, if you need to use USB cable lengths greater than 12ft then powered USB hubs will be required

See the camera installation page for more info


Note that all GSA Golf systems are completely modular - start with just 1 camera or sensor mat and add more cameras and features as and when requirement or budget allows.

GSA Golf Control Panel (CP) downloads

Update your current Control Panel with the latest GSA Golf CP version

Download standard configuration files hereHere

GSA Control Panel (CP) full version download

Note that the full version installation will overwrite any user settings if you have had any previous GSA Golf CP installations

GSA Golf Game software download

Experimenting and testing shots with manually entered launch parameters

You can test shots by manually setting the launch parameters in the Control Panel.

Right or Left mouse click in the Edit fields to change the parameters.

To see the trajectory of the ball in flight just click the "Launch Shot" button while having the GSA Golf software running in the background.


Single camera ball tracking system

Data captured:

Ball speed, ball path calculated and launch angle

System includes:

1. Vertical launch angle and ball speed camera with camera mount, cables and lens

Go here to see how CX1 calculates ball path : CX1 ball path detection method

2. Line scan camera (3000fps)

3. GSA Golf single course software plus E6 18 hole course and driving range demo software

4. Lighting system - Infrared LED



Price: $ 1,699.00




Dual camera 3D ball tracking system

Data captured: Ball speed, ball path and launch angle

System includes:

1. Vertical launch angle and ball speed camera with camera mount, cables and lens

2. Ball path camera with camera mount, cables and lens

Note: Our cameras are professional machine vision cameras.

3. Line scan camera (3000fps)

4. GSA Golf single course software plus E6 18 hole course and driving range demo software

5. Dual Infrared LED Lighting system

6. Calculated ball spin





CX2 detects ball launch angle, ball path, ball speed, fades, draws, hooks and slices

Price: $ 2,299.00 in standard casing




Professional 3 camera system with camera club tracking and 3D dual camera ball tracking

Data captured:

Ball speed, ball path and launch angle, club speed, club path and club face angle at impact to ball

System includes:

1. Vertical launch angle and ball speed camera with camera mount, cables and lens

2. Ball path camera with camera mount, cables and lens

Note: Our cameras are professional machine vision cameras.

3. Line scan camera (3000fps)

4. CTS club tracking system

5. GSA Golf single course software plus E6 18 hole course and driving range demo software



6. Fairway true feel grass hitting mat 24" * 12"

7. Lighting system - Infrared LED

8. Calculated ball spin

System detects fades, draws, hooks and slices!

System includes TGC 15 course software !

Price $ 3,999.00 in standard casing

CX3 cameras include : V Cam for ball Vertical launch - H Cam for Horizontal ball path with line scan camera trigger -

and C Cam Club Tracking System camera

Note that camera club tracking systems require the supplied tracking dots or white strips to be applied to the clubs




The CX3 C system is the same as the above CX3 system but uses a single color club tracking camera

to detect fades, draws, hooks and slices without the requirement to apply tracking dots to the club.

Data captured with the single HD club tracking color camera:

Club face angle Club path and speed are derived from ball speed and ball path

Vcam and Hcam cameras measure ball launch angle, speed and path.

Note that the color camera can be switched to detect tracking dots - as in the standard CX3 - if preferred.

add $200 extra for panel camera casings

System includes TGC 15 course software !

Price $ 3,999 with CTS

Q: What is the difference between CX3 and CX3c ?

A: CX3 uses a monochrome IR club tracking camera that detects club face angle, club path and speed but requires 2 tracking dots to be applied to the top surface of the club to do this

CX3c - the "c" stands for "Color" uses a color camera with a flash that detects club face angle without the requirement to use tracking dots.

CX3c calculates club path and speed from ball path and speed. For measured club path and speed, an extra 4th camera is required. This system is known as the CX4

Note that camera club tracking systems require the supplied tracking dots or white strips to be applied to the clubs




Professional 4 camera system with dual camera club tracking and 3D dual camera ball tracking

CX4 is a 4 camera system

Data captured:

Ball speed, ball path and launch angle, club speed, club path and club face angle at impact to ball

System includes:

1. Vertical launch angle and ball speed camera with camera mount, cables and lens

2. Ball path camera with camera mount, cables and lens

Note: Our cameras are professional machine vision cameras.

3. Line scan camera (3000fps)

4. CTS Pro dual camera club tracking system

5. GSA Golf single course software plus E6 18 hole course and driving range demo software

6. Fairway true feel grass hitting mat 24" * 12"

System includes TGC 15 course software !

CX4 Price $ 4,999 with CTS Pro

Comes complete with Fairway true feel grass hitting mat 24" x 12"

Note that camera club tracking systems require the supplied tracking dots or white strips to be applied to the clubs

Warning! Multiple camera systems of 4 or more cameras require that the host PC be capable of running 4 or more cameras.

If not using our custom made and dedicated PCs, GSA Advanced Golf Simulators LLC cannot guarantee that multiple camera systems consisting of 4 or more cameras will function correctly


The CX6 is a 6 camera system using all the features of the CX4 system but with the addition of the dual camera Bcam ball spin system

Data captured:

Ball speed, ball path, ball spin and launch angle, club speed, club path and club face angle at impact to ball

System includes:

1. Vertical launch angle and ball speed camera with camera mount, cables and lens

2. Ball path camera with camera mount, cables and lens

Note: Our cameras are professional machine vision cameras.

3. Line scan camera (3000fps)

4. CTS Pro dual camera club tracking system

5. Bcam dual camera ball spin detection system

Bcam ball spin detection cameras

6. GSA Golf single course software plus E6 18 hole course and driving range demo software

7. Fairway true feel grass hitting mat 24" * 12"

System includes TGC 15 course software !

GSA Golf multi camera high-end PC included

with 8 dedicated USB channels and powered USB hups for each camera !

$ 8,999.00









Note that CX6 camera club tracking systems may require the supplied tracking dots or white stripes to be applied to the clubs

CX6 includes the GSA Golf Custom built 4 to 8 camera PC with 21 inch monitor

With this PC, all software is pre-installed and can run up to 8 cameras

The GSA Golf custom built PC features 8 dedicated channel USB ports for up to 8 cameras

with GTX 1050 graphics card, Core i7 Intel processor, 8GB RAM, 1TB HHD and Windows 10

Note that when using your own PC with 4 or more cameras, you'll have to install at least one quad dedicated channel USB card.

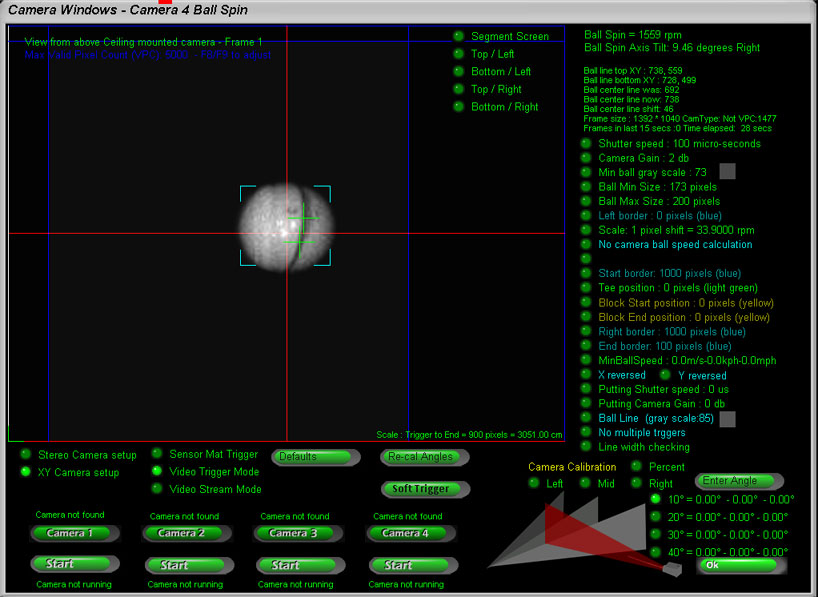

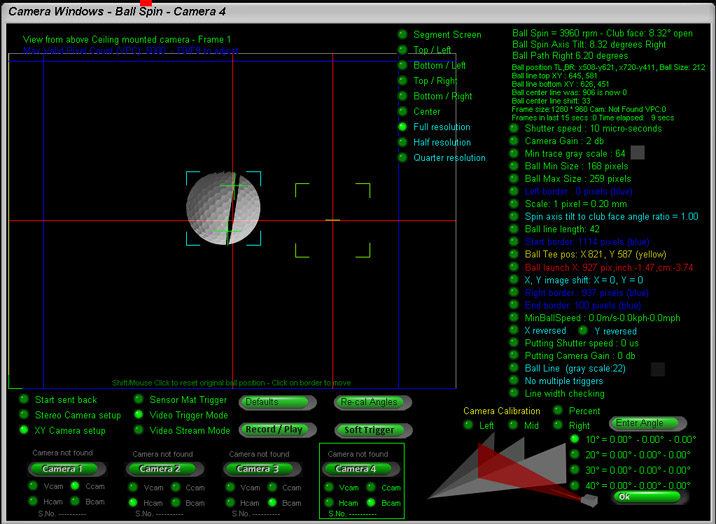

Ball Spin Camera

Bcam ball spin detection cameras

Click above Bcam image to read more about the Bcam ball spin camera


CTS - Club Tracking System

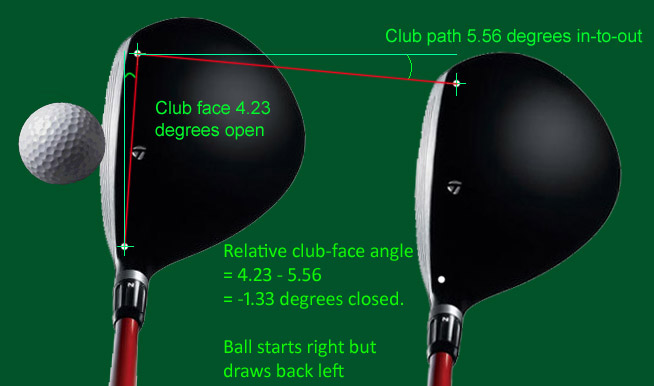

Photographically captures Club head path, speed & club face angle at impact to ball. System can be played with all golf game software including E6.

Note that CTS camera club tracking systems may require tracking dots or white stripes to be applied to the clubs





. Comes complete with Fairway true feel grass hitting mat 24" * 12"

CTS Mono with GSA Golf single course software plus E6 single course demo software

Price from $ 1,999.00



Our development time for this product: approx 6,000 hours

CTS Pro/Lite Color

Click above images to read more

Full color camera HD club tracking

-

Our assembly time for this product: 10 hours

Our development time for this product: aprox 8,000 hours


Videos

Ccam Club Tracking camera video

This video shows the setup parameters for the club tracking camera with examples of various club shots.

If using the Ccam CTS as stand-alone system - i.e. without ball tracking cameras - the section showing how to adjust the club/ball smash factor will be of interest.

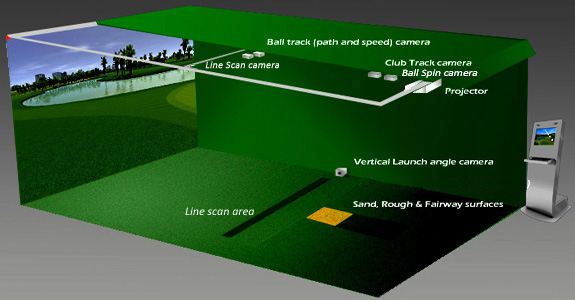

The above video shows what the 3 cameras do in the CX3 system

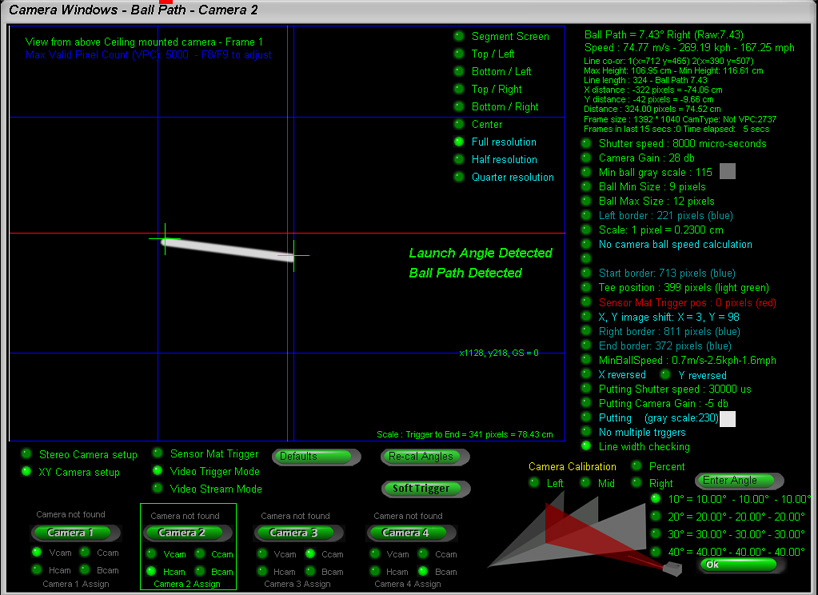

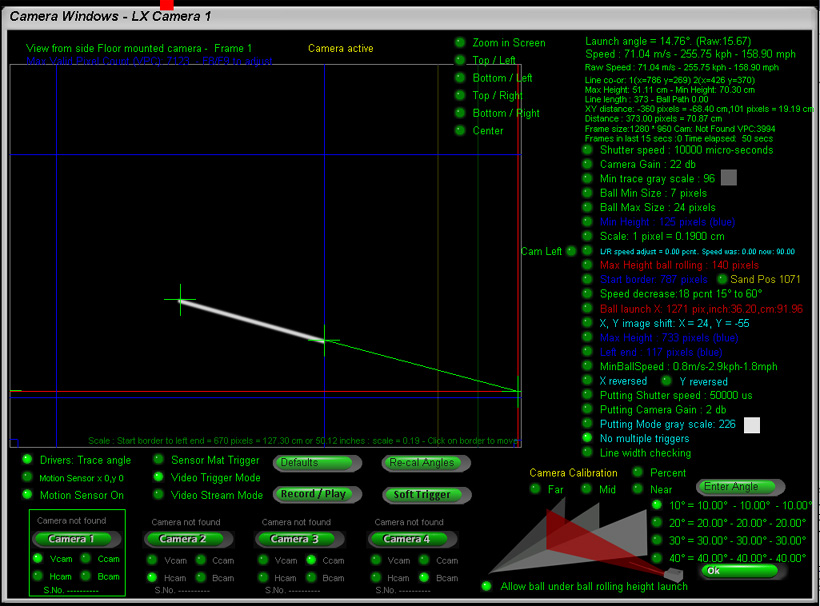

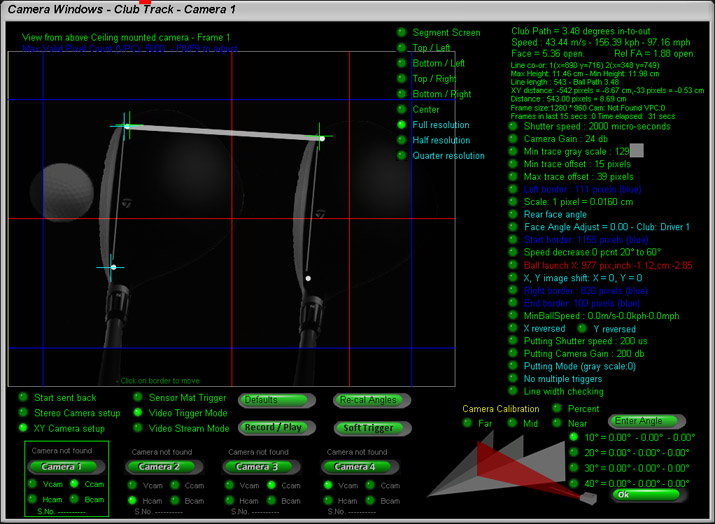

View camera images of your shots in the GSA Golf Control Panel camera windows

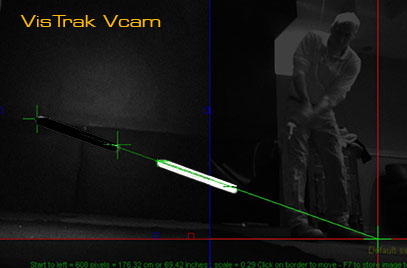

The side mounted Vcam detects vertical launch angle and speed of the ball

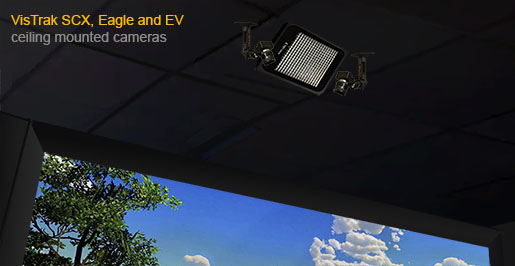

The ceiling mounted Hcam camera detects ball path for normal shots

ball path plus speed when putting

Bcam ball spin detection cameras

Club tracking cameras

Note that no other golf simulator manufacturer in the world can display real photo post shot images like these




CX2 draws and fades

Thanks to Keith in Canada (a CX2 customer) for making the above two Videos

The above videos show how fades and draws can be produced with the CX2 system even though CX2 doesn't detect club face so that spin tilt or side spin can be calculated.

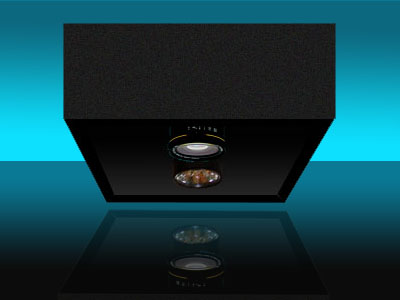

Casings

Panel casings

Panel casings are available for V cams, H & SX cams for $400 extra

Choose casing styles in the buy now pages

Surround casings

Surround camera casings contain cameras and lighting in a single case

Surround casings will be available later this year.

Prices are expected to be in the $ 2,000 extra range

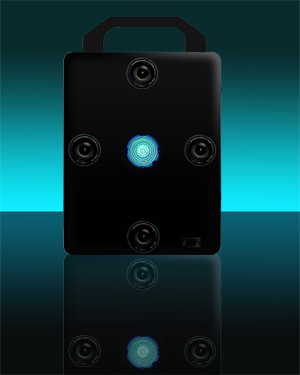

All Surround systems will feature stereoscopic vision cameras

As an alternative to the standard X,Y camera setup for CX camera systems,

new stereoscopic image processing software is in development that will allow you to mount both ball tracking cameras on the ceiling instead of one on the ceiling and the other on the floor .

In collaboration with our Swedish software engineers this software development will also vastly improve the accuracy of the ball tracking system.

First releases of this free software upgrade are expected to be ready later this coming spring.

Note that you can use your existing CX2 ball tracking cameras with this software without any additional hard or software costs.

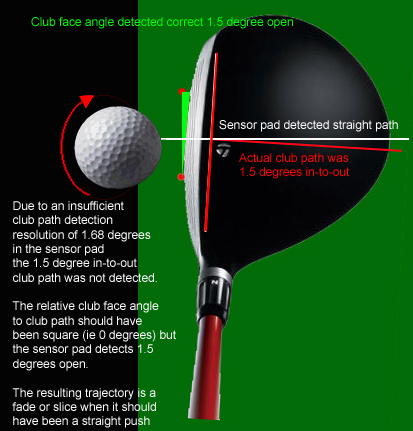

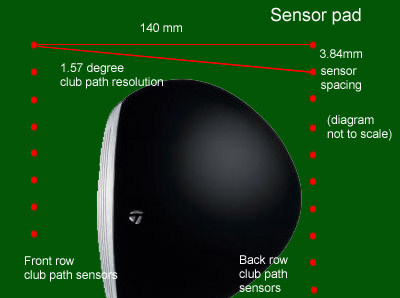

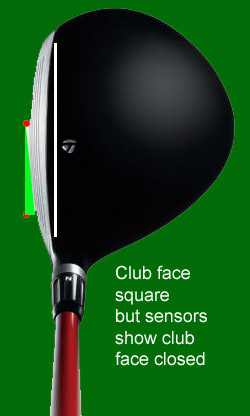

Advantages of camera systems compared to low priced optical sensor pads

Thinking of purchasing one of those low priced optical club tracking sensor pads on the market?

Here is a short list of the main disadvantages

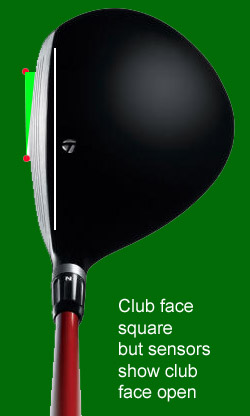

Those low cost sensor pads on the market do not see the ball at all so cannot possible calculate any realistic ball flight.

All ball data from launch angle, speed and direction to ball spin are only - at best - estimated and are mostly way off.

In fact, the all important ball launch angle is just fixed from the loft angle of the club you or the system has selected and bares no relation to reality what so ever.

No matter if you strike the ball on the down swing or upswing - or even top the ball so that is just rolls along the ground - you'll always get a perfect launch angled shot.

You can even just kick the ball with your foot and you'll still get a perfect launch angle.

Likewise, realistic ball direction or ball speed cannot be obtained by just looking at the club direction and speed.

In addition - and in contrast to GSA Golf camera systems that provide photographic evidence of all data - there's no way for the user to verify any of the data produced by these low cost optical pads.

You are forced to ether just take the manufacturers word for it and/or believe a paid golf professionals endorsement who would probably say anything if they are given enough money.

So buyer beware, low cost optical sensor pads are essentially just play station toys compared to true camera tracking systems.




Don't forget !

High-end software will require an adequate high-end gaming PC to run it all

Your average PC probably won't be up to scratch

Golf Simulator PC

Don't forget !

High-end software will require an adequate high-end gaming PC to run it all

Your average PC probably won't be up to scratch

Our new standard PC is the HP Omen gaming PC

with Radeon RX 480 graphics card, Core i7-6700, 8GB RAM, 1TB HHD and 256GB SSD and Windows 10

The HP Omen can run up to 3 cameras without having to add a quad dedicated channel USB card.

GSA Golf HP Omen gaming PC with 21 inch monitor

Note: our software is not pre-installed with this PC but we can remotely access and install free of charge

Price: $1,999.00

All PC's come with monitor and keyboard stands at no extra charge

GSA Golf Custom built PC

With this PC, all software is pre-installed and dual quad channel USB cards are installed for up to 8 cameras

The GSA Golf custom built PC features 8 dedicated channel USB ports for up to 8 cameras

with GTX 1050 graphics card, Core i5 or i7 Intel processor, 8GB RAM, 1TB HHD and Windows 10

with GTX grahics card

i5 model Price: $2,499.00



i7 model Price: $2,599.00



GSA Golf Custom built PC with Dell 21.5 inch touch screen

Price: $2,799.00












Installation

Free Remote Access Support

Remote access support is free of charge with every purchase

Just contact us for your free remote access support apointment and we'll have your system up and running in minutes

Other than installing the software, mounting the cameras and lights, we do all the rest for you free of charge.

Note that for the free remote access support you will need to contact us (via e-mail or phone) at least 24 hours in advance for the appointment and that "TeamViewer" is pre-installed.

Click on the above "TeamViewer" image to download and install TeamViewer

Once you have received your Remote Support appointment confirmation via e-mail, call us at 239-529-3060 on the appointment date at the specified time.

Note that we are closed on the weekends so your appointment must be placed during the working week before 1 pm on Friday.

We do remote sessions on the weekends too but nevertheless the appointment has to be made during the week and be confirmed.

Please remember that remote support cannot be in anyway guaranteed if calling out of the blue without an appointment.





Club Tracking Camera Ball spin camera Line Scan camera FX full systems KX Launch monitors Vistrack systems PX Systems LX Launch Monitor Installation and setup
