What's in the box

Tracking systems


Halogen lamp lighting

All PX club tracking mats use halogen lamp lighting.

PX2 Box contains:

1. Sensor hitting mat with fairway fiber grass and USB cable

2. System software DVD or USB thumb drive with TGC 15 course software and GSA Golf single course 18 hole software.

.3. USB 10 ft extension cable

4. Halogen lamp (50 watt 10 degree spot) with fixture

PX2-A Box contains:

1. All the above mentioned PX2 items

2. Optical sensor ball tracking

3. IR LED lamp

4. Set of 3 stance / holding mats


PX2-V Box contains:

1. All the above mentioned PX2 & PX2-A items

2. Vcam camera

3. SX Line scan camera trigger

4. Additional IR LED lighting and cables




-

Box contains:

1. Optical Sensor club tracking hitting mat with fairway fiber grass 24" x 12"

2. System software DVD or USB thumb drive with TGC 15 course software and GSA Golf single course 18 hole software.

3. Vcam Camera vertical launch angle and ball speed (side floor mounted) camera in casing on mount

4. Hcam Camera ball path camera (overhead mounted) in casing on mount

7.SX line scan camera

8. USB 10 ft extension cable for Sensor hitting mat

9. USB cable 6 ft miniA Vcam camera cable

10. USB cable 6 ft miniA Hcam camera cable

11. USB Cat5 adpater with 25ft cat cable Vcam camera cable

12. USB Cat5 adpater with 25ft cat cable Hcam camera cable

13. USB 10 ft extension cable Hcam camera cable

14. SX power supply

15. RCA trigger cable 15 ft Hcam camera cable with y splitter

16. RCA trigger extension cable 6 ft Hcam camera cable

17. 10° 50 watt halogen lamp required for the sensor mat

18. 3 x LED IR Illuminators required for ball tracking


Box contains:

1. TGC 15 course software and GSA Golf single course 18 hole software.

2. Vcam Camera vertical launch angle and ball speed (side floor mounted) camera in casing on mount

3. Hcam Camera ball path camera (overhead mounted) in casing on mount

4.SX line scan camera

5. USB cable 6 ft miniA Vcam camera cable

6. USB cable 6 ft miniA Hcam camera cable

7. USB Cat5 adpater with 25ft cat cable Vcam camera cable

8. USB Cat5 adpater with 25ft cat cable Hcam camera cable

10. 3 X USB 10 ft extension cable SX cable

14. RCA trigger cable 15 ft Vcam camera cable

15. RCA trigger cable 6 ft Hcam camera cable

16. 3 X IR LED lamp ligting

19. Remote SX sensitivity control on 12 ft cable






Box contains:

1. Fairway gras trigger mat

2. System software with TGC 15 course software and GSA Golf single course 18 hole software.

3. Vcam Camera vertical launch angle and ball speed (side floor mounted) camera in casing on mount

4. Hcam Camera ball path camera (overhead mounted) in casing on mount

5. SX line scan camera

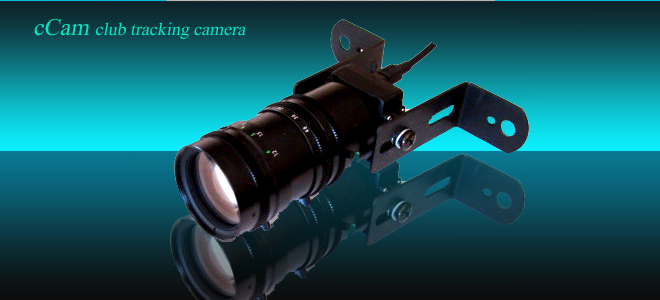

6. Ccam Camera club tracking camera (overhead mounted) camera in casing on mount with zoom lens

7. USB cable 6 ft miniA Vcam camera cable

8. USB cable 6 ft miniA Hcam camera cable

9. 3 X USB Cat5 adapter with 25ft cat cable Vcam camera cable

10. USB cable 6 ft miniA Ccam camera cable

11. RCA trigger cable 15 ft Hcam camera cable with y splitter

12. RCA trigger extension cable 6 ft Hcam camera cable

13. RCA trigger cable 15 ft Ccam camera cable

14. RCA trigger extension cable 6 ft Ccam camera cable

15.3 X IR LED lamps

16. 60 tracking dots for Ccam

17. Camera trigger hitting mat with fairway fiber grass panels (USB and RCA trigger cables attached)

23. Remote SX sensitivity control on 12ft cable




--


As above CX3 but with additional ball spin camera


As above CX2 but with CTS Pro dual color cameras


As above CX4cc but with additional dual camera ball spin unit


All CX camera tracking systems include the SX line scan camera

Box contains:

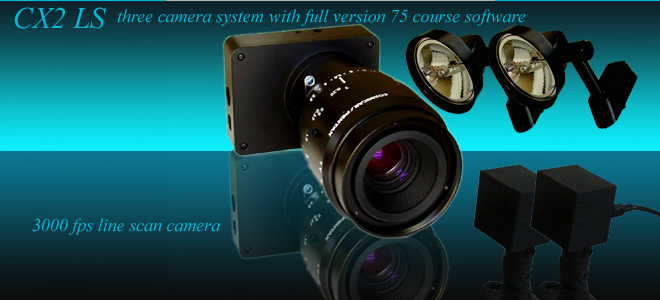

1. GSA 3000 fps line scan camera

2. USB extension cables for 30ft reach

3. RCA cable 15ft and RCA Y adapter

4. Remote sensitivity control on 20ft cable


Camera Optical Sensor Array Trigger

Box contains:

1. TX trigger array

2. USB and RCA extension cables


Box contains:

1. LX Pro unit

2. Dual USB cables for 10ft reach

3. Power supply

4. System software DVD or USB thumb drive with TGC 15 course software and GSA Golf single course 18 hole software.

5. 12 spin dot golf balls

6. Trigger mat


CX2 Surround

2 camera ball tracking - all cameras and lights in one 7ft long case

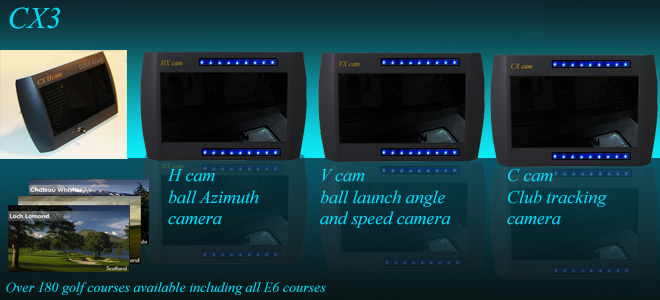

CX3 Surround

as CX 2 Surrond plus Ccam camera

or 2 camera ball tracking with PX1 club tracking

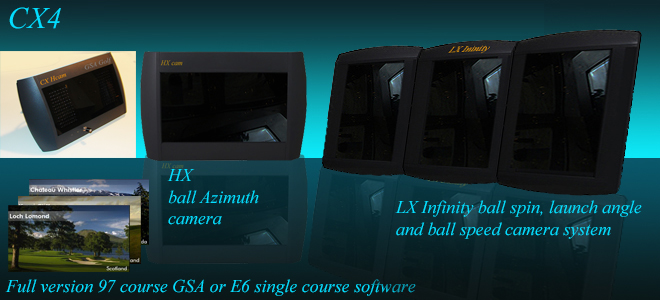

CX4 Surround

as CX 2 Surrond plus Ccam camera and Bcam camera

or 3 camera ball tracking with PX1 club tracking

Both Ccam and CTS systems come with a trigger mat

Note: the CX4 Surround features a smaller separate case

containing both the Ccam club tracking and Bcam ball spin cameras

mounted directly over the player's hitting position







What's in the box

Full F3 series systems

In addition to the tracking system

Hi-end Computer and Projector, all cables and lighting

Padded turf grass flooring

Oak turf carpet wood transition trim

Custom size high quality 3 layer premium impact projection screen with bungee cords

-

Impact screen frame and fittings plus screen valance rolls

Enclosure track drapes

Hi-end software options with over 100,000 golf courses

All F series golf simulators include fairway grass hitting mat surfaces

All F series golf simulators from F3 upwards include simulated rough and sand surfaces
