Padded grass turf flooring by the roll

Padded grass turf. Color: OliveGreen

15ft * 20ft Price $1,599 + $269 shipping

12ft * 20ft Price $1,299 + $269 shipping



12ft * 15ft Price $999 + $269 shipping



12ft * 12ft Price $899 + $269 shipping


Stance mats



">

3ft * 4ft - $217 - free shipping

4ft * 4ft - $258 - free shipping

4ft * 5ft - $283 - free shipping

5ft * 5ft - $320- free shipping

Set of all 3 stance mats

2 x 3ft X 4ft left and right stance mats

plus 1 x 5ft X 5ft - front mat

$ 750- free shipping

OR

2 x 4ft X 4ft left and right stance mats

plus 1 x 5ft X 5ft - front mat

$ 836 - free shipping


Grass fiber panels

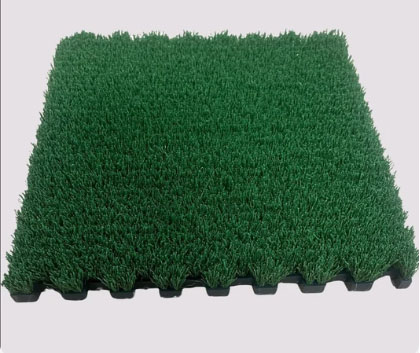

12" * 12" fiber grass panels

Price $ 120.00 each



All 4 panels - 2 x fairway - rough - sand - Price $ 420.00








Stance mat flooring

Recommended flooring layouts when using our 4ft square 1 1/4 inch thick stance mats






Raised flooring

If you want the grass hitting mat panels to be flush (i.e. at the same height) as the turf grass flooring

then there are two methods:

1. Either the area around the hitting surfaces or the entire flooring has to be raised

2. Use stance mats and rubber bases next to the hitting surfaces

-

Stance mats are usually only around 5/8" to 1 1/4 " so so additional rubber base mats will be required to raise the stance mat

to the height of the hitting mats or trigger arrays

The trigger array (if you are not using a line scan camera) is 1 1/4" high so you'll require either 5/8" or 3/4"

base rubber mats to raise the stance mat to clear the trigger array at 1 3/8 if using a 5/8" thick stance mats.

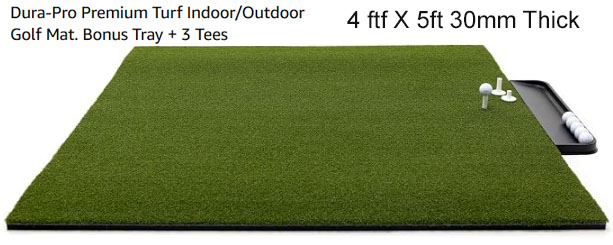

Note that Dura Pro stance mats are (according to reviews) are already 1 1/4" thick

The trigger mats used with club tracking camera systems are 1 7/8" high so grass fibers will be 1/2" higher than the stance mat without making a

trigger mat cut-out in the turf grass flooring which is 3/8" thick.

With the cut-out the the fibers will only be 1/8 above the stance mat.

PX optical sensor club tracking mats have a 1 1/4 inch (10/8") base and 1 5/8" (13/8") high fairway grass panels on top.

Total height of a PX mat is then 23/8" or 2 7/8"

Using two 3/4" rubber bases brings the base up to 1 1/2" high , the PX mat cut-out in the turf flooring another 3/8" and the stance mat another 5/8

for a total stance mat height of 2 1/2"

These means that fibers on the PX mat will only be 3/8" higher than the stance mat.

Note that our stance mats are already 1 1/4" thick so only one rubber foundation will be required.

More elaborate methods (like in the above image) require a 2 x 4 frame and plywood construction

Building a stance mat platform

This is a simple way of building a high profile - 3 inch high or more - stance mat platform.

Using 2 or more rubber foundation mats ($95 each) to build up to the height your require, place the stance mat(s) on top

and make a holding frame using 2x4 or 2x3 lumber and optionally top off with round carpet transition trim.

Finished exotic wood lumber for your framing is available from this company for around $ 14 a foot

Raised flooring

DIY 2x4 wood frames with plywood panels to raise floor 2.5 inches


Stance mat systems

Purchase this stance mat system direct from FiberBuilt

Our trigger mats and PX mats fit right in

If using stance mats then the grass panels will have to be anchored to the floor.

Aluminum or steel 1/2" angled extrusion can be used to anchor the grass panel hitting surfaces to the floor for a more rigid hold.

Extrusion is not seen when stance mats are buffeted up against the grass panels

If level playing surfaces are not required then at least a cutout in the turf carpeting around the hitting mat is recommended

Either the angled profile (as shown above) or screws direct through mat is used to secure the mat to the flooring


All F series golf simulators include fairway grass, rough and sand hitting mat surfaces

Note that when playing the ball from these other surfaces (i.e. rough, sand or greens) then club tracking will not function

as the CTS camera trigger sensor or club tracking sensors are only in the fairway panels.

Wood flooring transition trim

All F Series simulators and Studio enclosures include Gloss Oak style wood transition trim


Floor scan area

When using our camera systems with line scan cameras

SX line scan cameras

The flooring area directly under the line scan camera, IR lamp and Hcam camera must be dark and non reflective.

You can either use non-reflective black carpet or low reflective olive green padded turf

Example of low reflective turf:

6ft * 12ft less reflective padded turf grass mat suitable for camera systems

Price $399 + $99 shipping





You may find that the turf carpeting you are already using works well too so try this first

You can also use a black carpet strip (5ft * 5ft)

Note that treating the flooring in the scan area requires masking off the area and spray painting with a matt ( flat ) black spray.

When using the non-reflective black carpet,

you can use 4 inch wide black felt tape to transition the carpet edges to the turf flooring

In case you need to purchase the scan area black non-reflective carpet and felt tape :

Price : $ 150.00





A recommended carpet is : Beaullieu of America - Type: Dayside Ebony, Product 6670-890 which is available at your local Home Depot store at around $4.00 a per ft 6ft wide.



The above image shows what the spray painted scan area treated method looks like.

It's advantage is that there is no lip in the flooring.

When using the non-reflective black carpet,

you can use 4 inch wide black felt tape to transition the carpet edges to the turf flooring

Trigger arrays

If using camera trigger arrays instead of line scan cameras, then the turf flooring doesn't have to be totally non reflective

--
