Vcam

for Vertical launch angle and ball speed

Hcam

for ball azimuth (path / horizontal plane)

Data captured: Ball speed, ball path calculated and launch angle

System includes:

1. Vertical launch angle and ball speed camera with camera mount, cables and lens

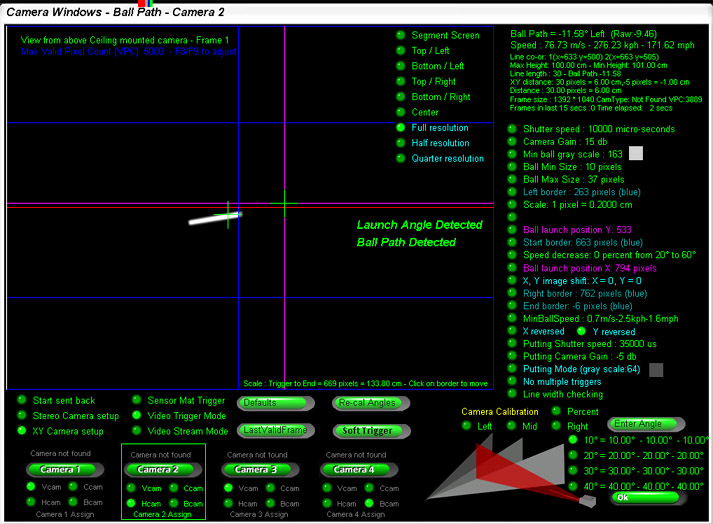

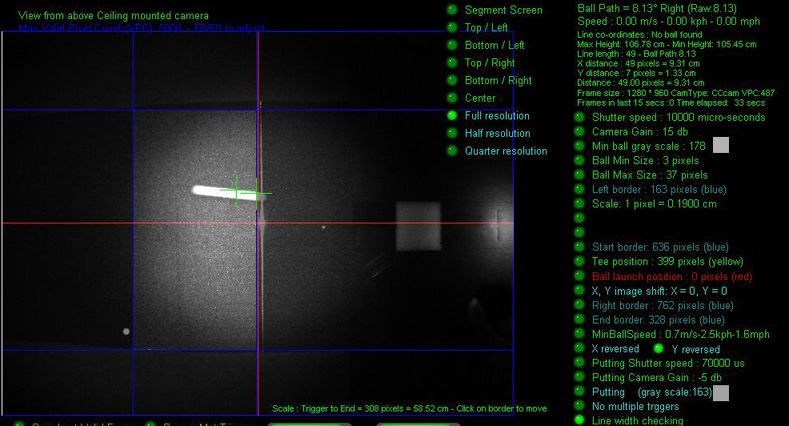

Go here to see how CX1 calculates ball path : CX1 ball path detection method

2. Line scan camera (3000fps)

3. GSA Golf single course software plus E6 single course demo software

4. Lighting system - Infrared LED



Click above images for more golf courses

Price: $ 1,499.00 .................. Financing available!



Note: CX1 can be upgraded to CX2 or CX3 anytime by just adding more cameras

All CX Systems include IR LED and optional Halogen track lighting.

IR light is invisible to the eye so your enclosure remains dark and the screen image bright


The CX2 is by far our best selling system.

Even if it's price was double what it is, it would still be less than half the price of comparable systems from our competitors.

Data captured: Ball speed, ball path and launch angle

System includes:

1. Vertical launch angle and ball speed camera with camera mount, cables and lens

2. Ball path camera with camera mount, cables and lens

Note: Our cameras are professional machine vision cameras.

3. Line scan camera (3000fps)

4. GSA Golf single course software plus E6 single course demo software

Click above images for more golf courses

5. Lighting system - Infrared LED

6. Stereoscopic vision option

7. Ball spin calculated

Normal retail price: $4,999. Discounted price direct from factory :

CX2 detects ball launch angle, ball path, ball speed, fades, draws, hooks and slices,

Price: $ 2,399.00 in standard casing .................. Financing available!

Price: $ 2,799.00 in panel casing As shown .................. Financing available!



-

Our assembly time for this product: 10 hours

Our development time for this product: aprox 8,000 hours

CX2 draws and fades

The above video shows how fades and draws can be produced with the CX2 system even though CX2 doesn't detect club face so that spin tilt or side spin can be calculated.

CX2 Surround

The CX2 in Surround casing contains all IR LED, Halogen and Xenon lighting, dual ball tracking cameras, Line scan trigger camera and power supplies.

Price: $ 4,999.00 As shown .................. Financing available!



New user produced CX2 Video using The Golf Club software

Thanks to Keith in Canada for sharing this with us.



---

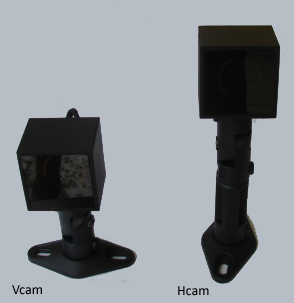

System cameras

CX1 - Vcam

CX2 - Vcam + Hcam

CX3 - Vcam + Hcam + Ccam

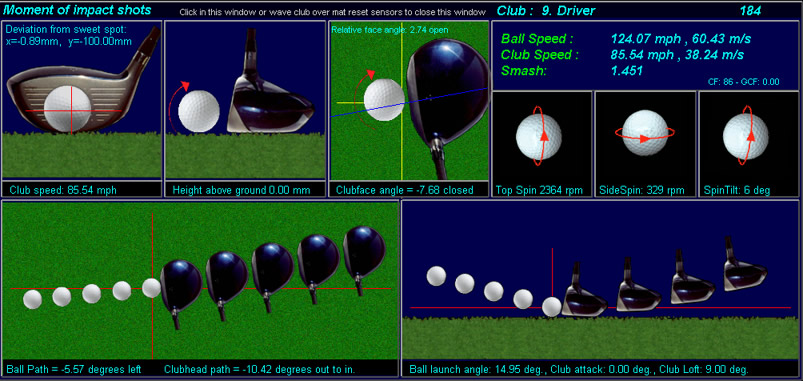

PX5 - Vcam + Hcam + PX2 sensor mat

Note: All systems come with SX Line Scan cameras



Note that Remote access support is free of charge with every purchase

Just contact us for your free remote access support apointment and we'll have your system up and running in minutes

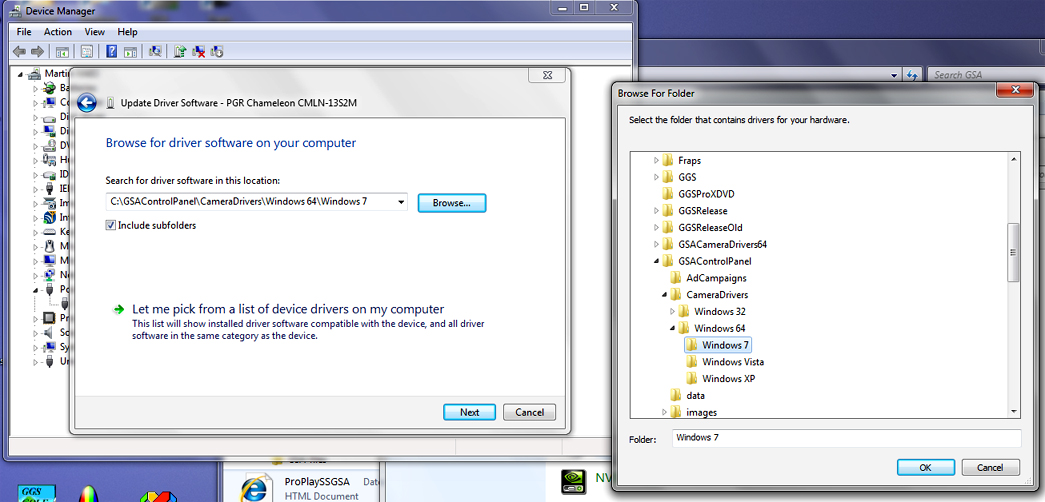

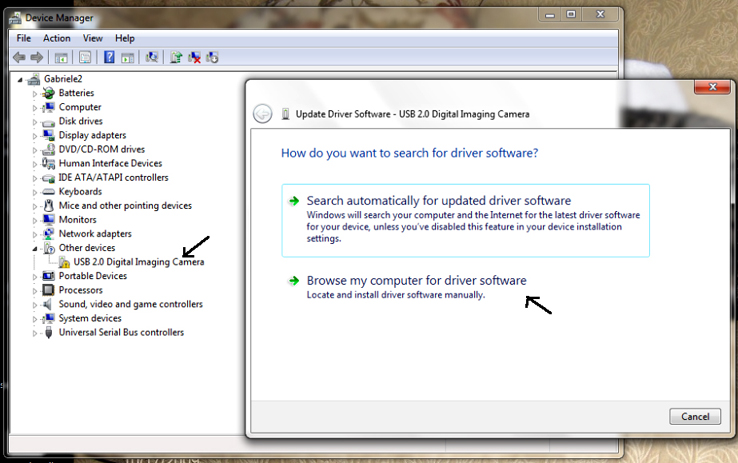

Other than installing the software, mounting the cameras and lights, we do all the rest for you free of charge.

There's no complicated setup required.

Principle of operation

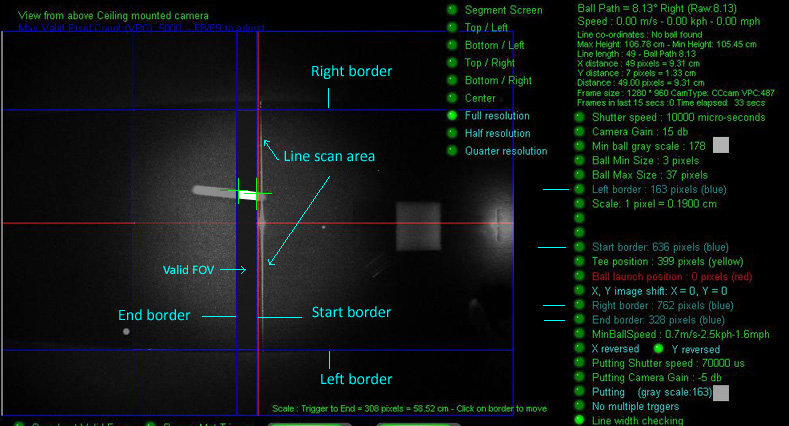

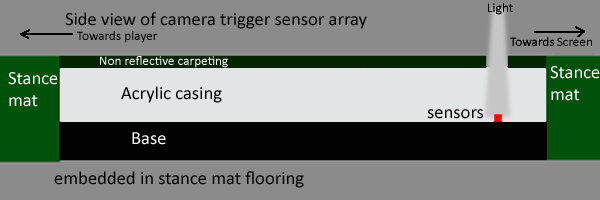

The cameras - which are normally in an idle wait state - are triggered by any bright object passing through the line scan area.

Image processing will then detect if the object was a flying or rolling golf ball in the captured frames

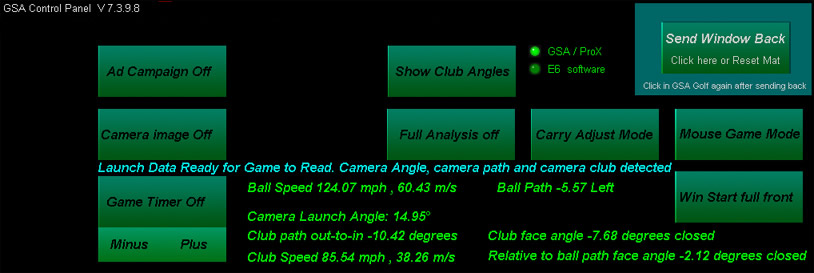

and determine the ball speed, path and launch angle. This data is then passed to the game software

which in turn will calculate the ball's flight trajectory and launch the ball in the system.

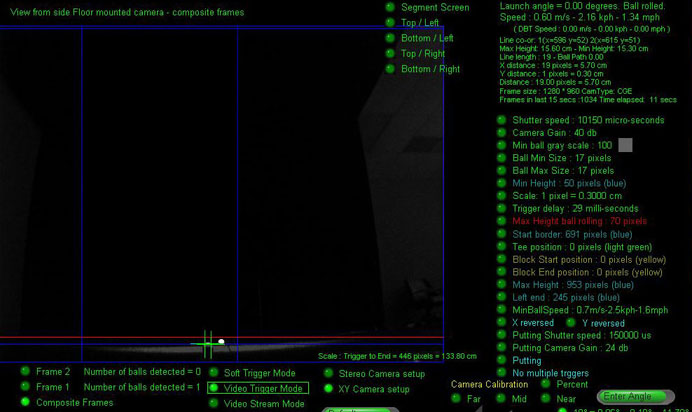

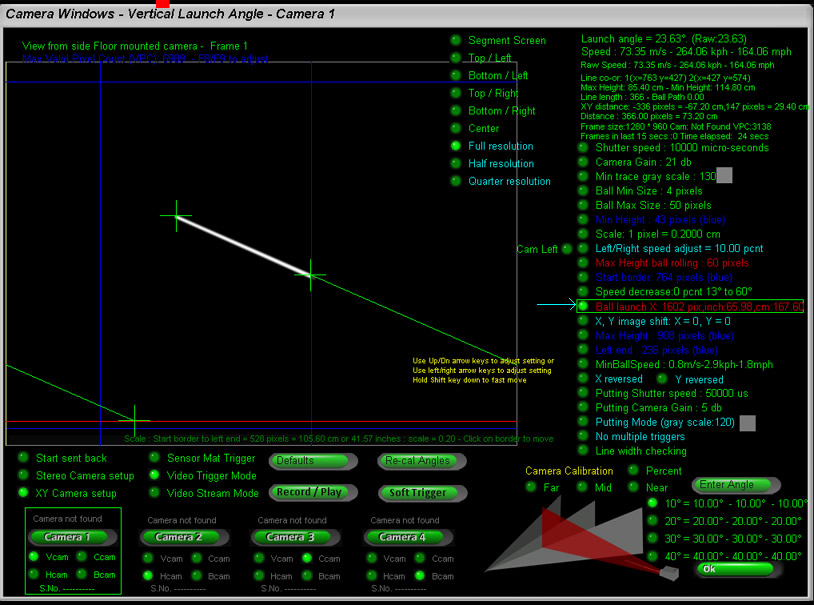

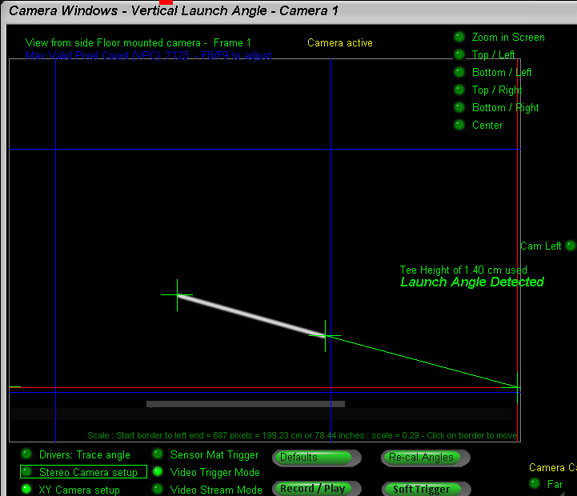

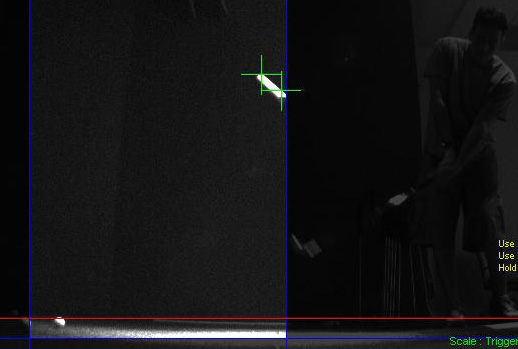

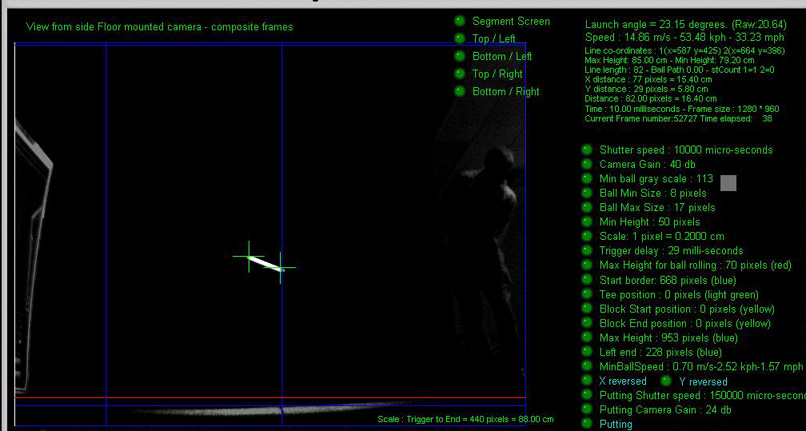

The above image from the GSA Golf Control Panel is a true live shot from the floor mounted vertical launch angle camera of a ball hit with a 7 iron.

The camera field of view is actually far greater than what is actually required

and captures the player (on the right), the projection screen (on the left) and the floor.

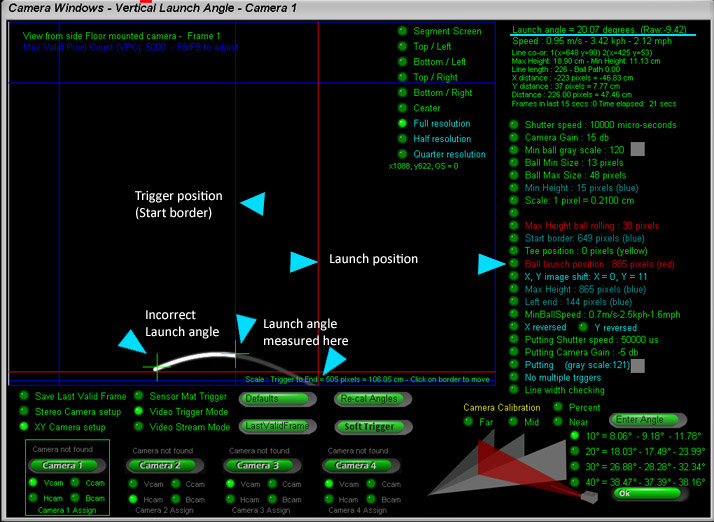

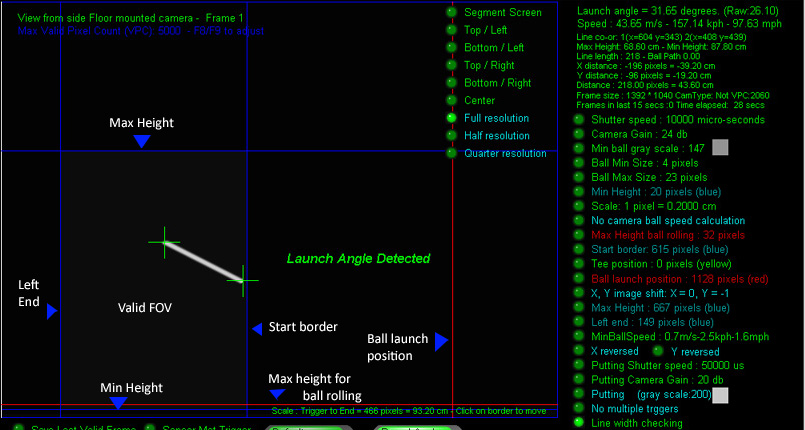

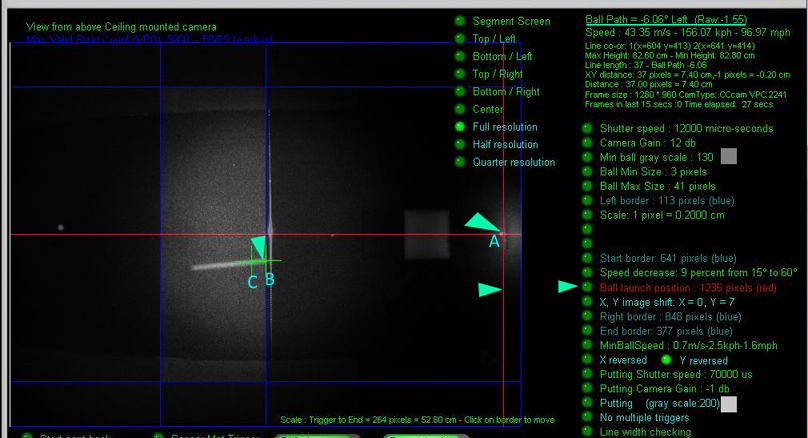

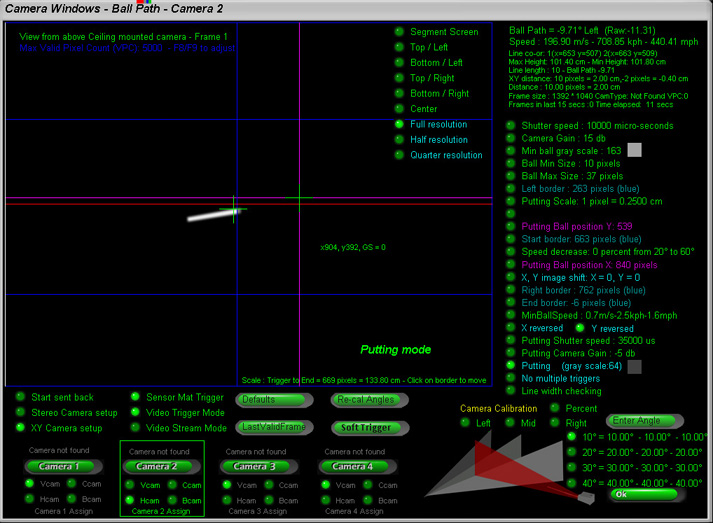

The blue border lines dictate the valid field of view

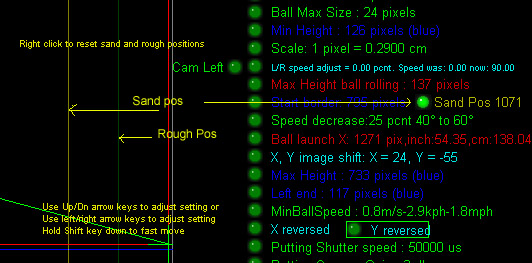

and the red line dictates the maximum ball height a ball will have to be considered as a rolling ball or sculled shot.

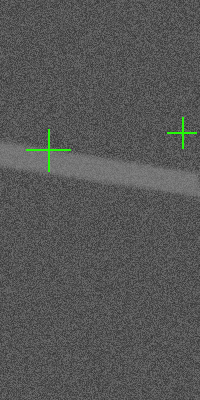

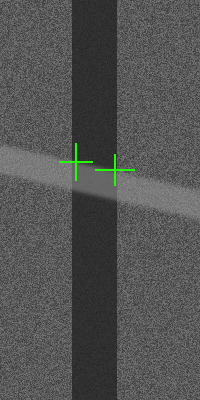

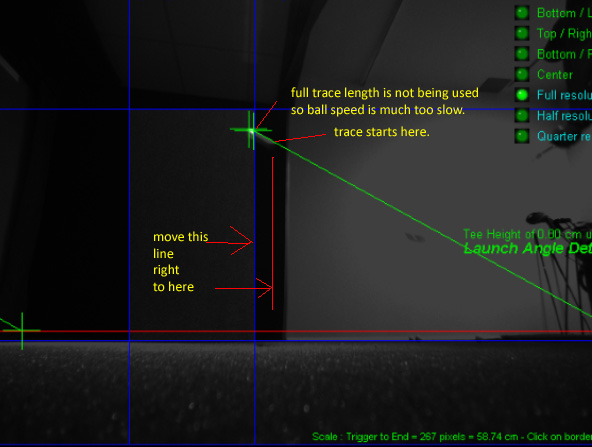

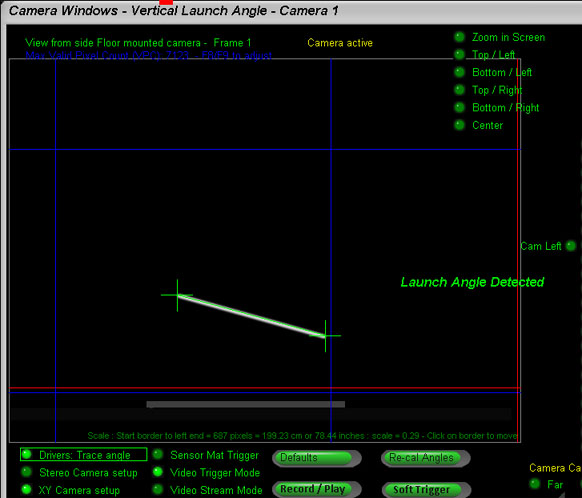

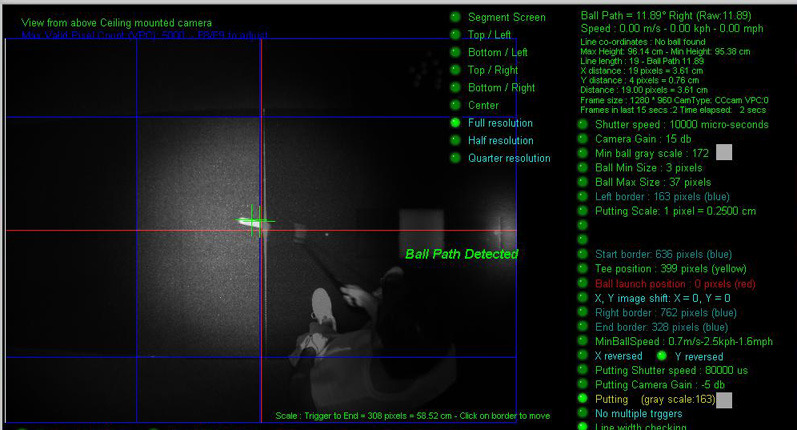

Note that the length of the ball trace is directly proportional to the ball's speed

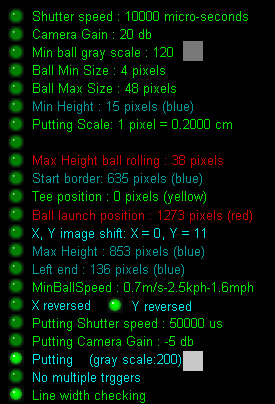

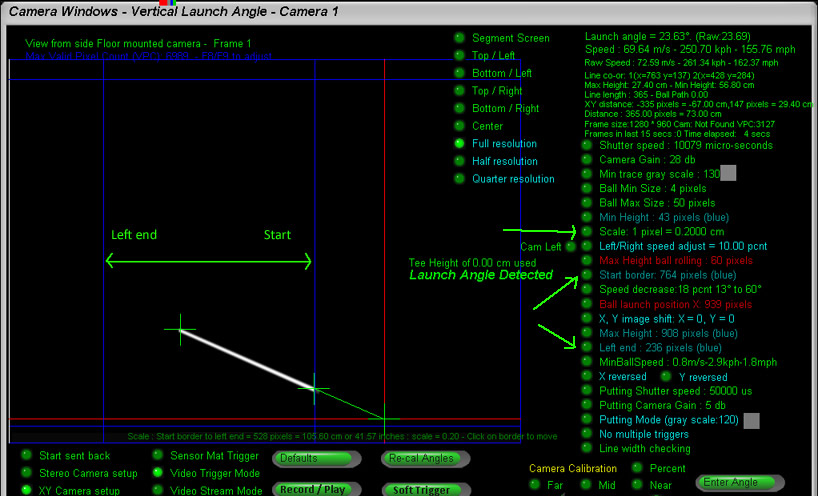

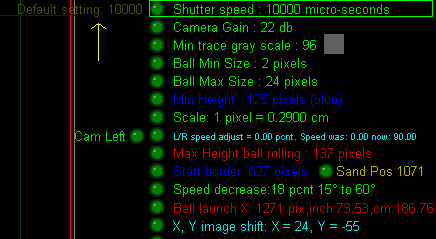

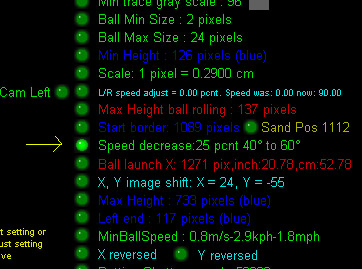

and providing the camera's exposure time (10 milli seconds here) and the pixel to cm scale (0.2 here) is constant - which it always is - this correlation is constant and consistent.

i.e. no matter what the launch angle is, the length of the ball trace will always be the same for a given ball speed and will always be directly proportional to the ball's speed .

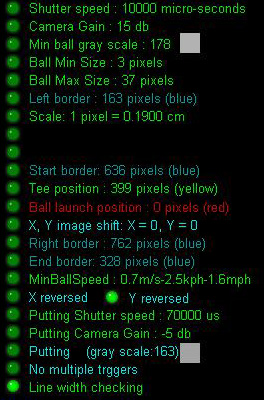

Note the strong contrast between the background and the ball trace.

This is achieved by setting the camera gain high which amplifies the contrast.

The room is actually much lighter so you are not playing in the dark but the camera sees it as very dark due to the fast shutter speed.

The ball is illuminated by the overhead and side mounted halogen and IR LED lamps.

The above video shows what the 3 cameras do in the CX3 system

The above video of the control panel is in HD



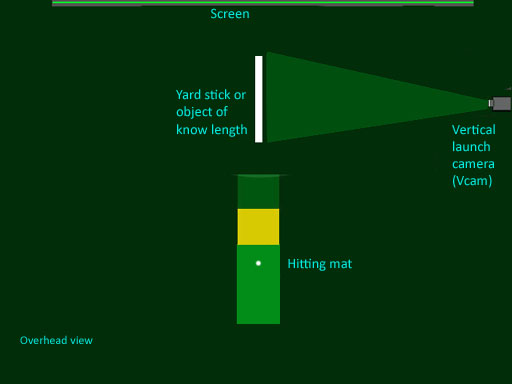

CX1/CX2/CX3/PX5 camera setup video

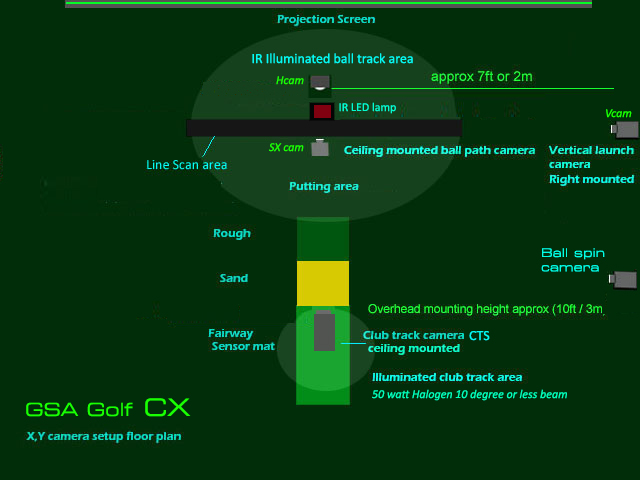

This is the basic floor layout for the 5 cameras.

You can purchase all GSA Golf Products direct from this web site or via any of our resellers
