Video Swing Capture
Please note that when using VisTrak camera systems,
the swing capture software and cameras have to be installed on separate PC or Laptop.
Auto start/stop recording without the requirement to use a foot switch
System detects ball in the user defined launch zone area and automatically starts recording.
After ball strike (detected by the ball no longer in the launch zone), the system automatically stops recording after an additional 100 frames.
System captures 100 frames before ball strike and 100 frames after ball strike at 50 to 90 fps
System features Line drawing and angle measurements
System records and saves swing video files at up to 290 FPS.
The 200 frame videos can be saved and retrieved for individual players for a particular date.
Dual panels allow comparisons to be made of the same view angle or from two different view angles.
Playback and recording speeds can be adjusted. Plus the usual step/run forward, backward video controls.
Web-cam version
Logitech Brio 4K Utra 4K HD USB 3 web cams required for 60 plus fps
Web cam versions up to 90 FPS, unlimited video storage, auto start/stop, auto playback, video editing and angle drawing.
200 frames per shot video
Software updates are free of charge, no subscriptions.
(Unlike others, like Swing Catalyst, who charge $490 a year subscription fees plus another $590 or so for the camera)
Cameras can be mounted overhead as well.
System can be used indoors or outdoors on the driving range with a laptop
Webcam (Logitech Brio 4K Utra 4K HD USB 3) single color camera, tripod and software.
$ 399
Dual (Logitech Brio 4K Utra 4K HD USB 3) web cams camera version
$ 599
Hi-speed camera version
1 Hi-speed 290 / 800FPS Single color Camera, tripod and software.
$ 699
2 Hi-speed 290/ 800 FPS dual color camera version
$ 1,199
Club and ball shot capture
Cameras can also be used to capture close up videos of the club and ball running at 800 fps per camera
GSA Golf Control Panel (CP) Swing Capture version software
$ 199.00
For those that would prefer to purchase their own web cam cameras
you can purchase just the software.
Functions with any webcam!
Note, for best results, use hi-end web cams capable of at least 60 fps
Hi Speed camera Ball and Club tracking software upgrades
You can also upgrade the above Swing Capture software to function with hi-speed ball and club tracking cameras
for use in a golf simulator
1 hi-speed camera software upgrade
$ 100.00
2 hi-speed camera software upgrade
$ 200.00
Manual stop/start record switches
-
For those that would prefer to manually stop / start the recording,
both foot and hand held wireless switches can be used.

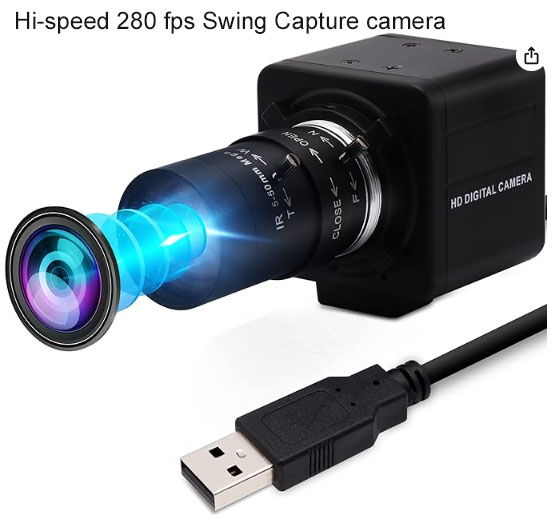

Hi-speed Swing Capture color cameras
Includes lens, USB3 cable and driver software
$ 499.00
Ultra 4K HD web cams
Includes lens, USB3 cable and driver software
$ 199.00
Logitech Webcam Setup
When using a webcam for Swing Capture, you will probably have to reduce the camera's exposure time in order to prevent motion blur.
Note that additional lighting maybe required when exposure time is set low.
Click the above image to see a general webcam setup video
Setting the Launch Zone
The system can automatically start and stop the cameras
Auto start/stop recording without the requirement to use a foot switch
System detects ball in the user defined launch zone area and automatically starts recording.
After ball strike (detected by the ball no longer in the launch zone), the system automatically stops recording after an additional 100 frames.
System captures 100 frames before ball strike and 100 frames after ball strike at 50 to 90 fps
Min ball color?
The system detects a ball in the LZ area by scanning the LZ area for any pixel greater than or equal to the min ball color.
The color is in gray scale levels of 0 to 255.
A reasonably bright white ball would have a gray scale level of at least 150.
Ensure that the ball is seen as relatively bright white and the surrounding area far darker.
Depending on lighting conditions, some adjustment my be required.
Switching the Laptop's built-in camera OFF
GSA Golf Control Panel (CP) full version software
Software includes hi-speed machine vision camera interfaces for ball and club tracking for use in a golf simulator
Functions with E6, TGC, GSpro, Creative Golf 3D, RedChain and ProX golf simulator game software
GSA Golf CP software license for use with 1 hi-speed ball and club tracking camera
Includes Swing Capture software
$ 299.00
GSA Golf CP software license for use with 2 hi-speed ball and club tracking camera cameras
Includes Swing Capture software
$ 399.00
