CX golf simulator components


Base CX camera

Base CX cameras with lens for V or H cam or Stereo ball tracking camera systems.

These cameras are the standard cameras used in all GSA Golf CX products and systems

The cameras are registered and licensed to be used with all versions of the GSA Golf Control Panel

Price $ 599.00

Price includes lens, camera mount, full version control panel software and 18 hole golf course software


VisTrak camera

Price $ 999.00

Price includes lens, camera mount, full version control panel software for use as video playback shot analysis and as a golf simulator tracking system.

Lighting not included.


Low distortion 3,5mm lens and lens adapter for GSA Golf cameras suitable for CX V and H cams .

Price $ 99.00

4mm lens for GSA Golf CX cameras suitable for CX V and H cams.

Price $ 39.00

8mm lens for GSA Golf Line Scan cameras

Price $ 39.00

Dual 8mm lenses for GSA Golf VisTrak IRV Stereo systems

Price $ 60.00

12mm lens for VisTrak cameras

Price $ 39.00

25mm lens for GSA Golf Quantum cameras

Price $ 39.00

35 mm fixed focal length lens suitable for Ccam, CTS and Bcam cameras

Price $ 249.00




Cables

VisTrak USB3 cable

Highest quality USB 3.1 locking cable

Price $ 35.00

USB3 extension cable

Highest quality USB 3 15ft active Extension Cable

Price $ 35.00

USB to Cat adapter

Powered USB to Cat5 (Ethernet) adpater to extend USB2 cable up to 50ft

Price $ 99.00 includes 25ft Cat5 cable

Price $ 29.00

Ethernet cable 25ft




The GSA Golf Control Panel is free with every camera purchased directly from us

however, for those that wish to purchase their own cameras from Flir.com

the Control Panel software can also be purchased separately.



GSA Control Panel full version with single camera license

Price $ 299.00

Click above image to read more...

Price includes the GSA Golf 18 hole single golf course software

GSA Golf Control Panel (CP) full version

$199.00

The full version GSA Golf Control Panel runs with any web cam for swing playback

Webcam Video Swing Capture software

Webcam ball and club tracking software

functions with E6 Connect and TGC software

plus

GSA Golf 18 hole golf software plus GSA Golf driving range

that can be played with the CP's mouse functions

plus E6 Connect trial that can be played with the CP's mouse functions

$199.00

After purchase, the CP full version download link will be sent to you within 24 hours

Note: this software is free of charge for all customers purchasing a GSA Golf tracking system

If purchasing this software first, then it will be refunded after the tracking system purchase


VisTrak lighting options

VisTrak IR LED panel

LED 800 Panel

Note: If purcasing the VisTrak IR this LED panel is already included

Includes all IR LED panels (800 LEDS), power supplies, projector mount and cables

$ 800

Add the panel to your VisTrak base camera to mak up a VisTrak IR

Individual LED IR lights

Individual 200 IR LED Lamps suitable for both the VisTrak and Stereo camera systems are available on Amazon.

$ 129 each

2 to 4 are required for the VisTrak camera.

CM Vision IR LED Illuminators

CM 12 as used in the KX2 systems

$ 99.00

CM 24 floor mounted - used in the Vcam systems

$ 149.00

Video LED Spotlight

visible light for color cameras

Studio LED spot light 150w lamp

$ 399.00

Studio LED spot light lens.

$ 150.00


Monitor stand

Click above to read more...


CX camera triggers

SX line scan camera trigger

Buy the GSA Golf Line Scan camera

With the new 400 dpi line scan chip and 70 degree wide angle range lens

Detects all putts to lob wedge shots

Price $ 399.00

CTS tracking dots

60 club tracking dots and 18 squares are supplied with the system.

Price $ 50.00


Camera casings

Panel casings for H, V cam or C cam.

Price includes LED IR lighting, USB over CAT adapters with 25ft CAT cable, acrylic IR panels, projector mount and power supplies.

Price $ 499.00 each without blue edge lighting



Price $ 599.00 each with blue edge lighting



Any standard camera case

Cases include mounts, LEDs, RCA trigger signal connectors, camera GPIO cable and Lens hood

Price $ 195.00 each






Halogen narrow beam lamp for shadow based trigger mats

Price $ 99.00




PX circuit boards

with dual single course software (RedChain and E6 demo )

Complete PX2 kit

Includes slotted grass panels with frame, base, acrylic glass panels, halogen lamps and cables

All screws supplied. Kit only requires drilling fixing holes and screwing together

Price: $ 1,999.00

regular price $2,999





96 sensors for double accuracy

Data captured

1. Club head velocity

2. Club head face angle at impact to ball ( degrees club-head open or closed at moment of impact in relation to club head path )

3. Club head path   i.e. Square, in-to-out, out-to-in.

4. Horizontal ball position at impact on club face

93 sensors, 2 * 16 bit counters, USB Serial I/O

Maximum measurable Club Path : 24° in-to-out 29° out-to-in +/- 0.65°

Advanced mathmatical algorithms in the software calculate (not measure) ball spin and spin axis tilt

from the club-face angle, club path, loft and velocity which determines the ball flight curve

ie. draws, fades, hooks and slices.

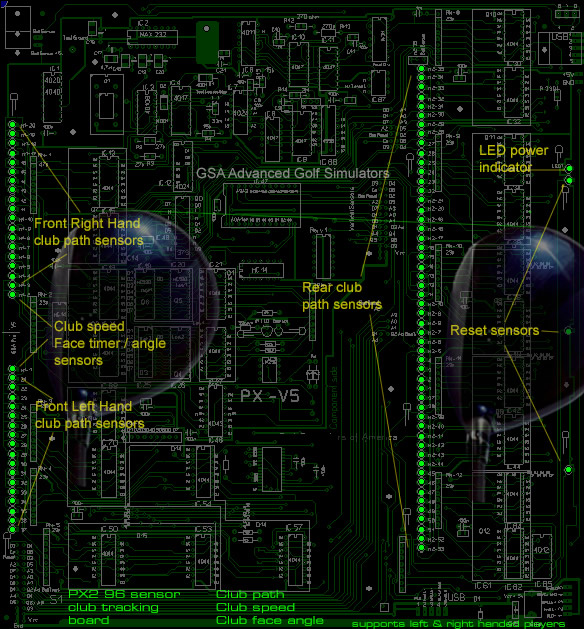

PX 2 - 93 sensor circuit board

Fully assembled and tested with GSA Golf software suite including RedChain single course software and GSA Golf Control Panel

Price $ 1,299.00

PX 1 - 32 sensor circuit board

Fully assembled and tested with GSA Golf software suite including RedChain single course software and GSA Golf Control Panel

Data captured: Club path, club face angle and speed

Price $ 699.00




PX sensor mat replacement fiber grass front panel



PX sensor mat replacement fiber grass front panel

Price $ 179.00

The replacement PX2 fiber grass front panel features pre-milled slots and is grass fiber trimmed to fit perfectly to your PX2 sensor mat


PX Ball Track

PX Ball track kit with circuit board

add-on to PX2 club tracking board

Fully assembled and tested with GSA Golf software suite including RedChain and E6 single course software and GSA Golf Control Panel

Price $ 999.00 Includes slotted grass panel with frame

All screws supplied. Kit only requires drilling fixing holes and screwing together


Shadow sensor trigger mat

Shadow sensor trigger mats are used for systems that require an overhead light source i.e. Ccam club tracking and Bcam ball spin cameras.

When the club or ball passes over the sensors, the resulting shadow will create a trigger signal to the cameras.

Price $ 429.00


New "Line Scan Shot Detector" prevents inadvertent ball launches in game when retrieving balls

Occasionally inadvertent ball launches may occur when walking within the line scan area - usually to pick-up balls.

The addition of this new line scan camera placed halfway between the Hcam and hitting area will prevent this.

The "Line Scan Shot Detector" is used as a trigger gate that only allows the main line scan camera's trigger signal to pass through to the ball V and H cameras if an object passes through its FOV.

It can also be used to detect if someone is standing at or close to the hitting position and thus blocks the main trigger signal if no one is at the hitting mat.

Price: $ 299.00



New "Optical Sensor Shot Detector" prevents inadvertent ball launches in game when retrieving balls

A lower cost alternative to the line scan camera shot detection, is to use an optical sensor shot detector. This sensor is emedded in the hitting mat just in front of the ball launch position.

Up to 3 sensors can be used: one in the hitting mat for regular shots, one on green surface for putting and one for the rough or sand shots.

How it works: The RCA cable that is normally connected to the Vcam from the SX Line Scan camera is instead plugged into the Shot Detector and the output of the ShotDetector is plugged back into the Vcam.

In the Shot Detector's normal state, all trigger signals coming from the SX cam to the Vcam are then blocked.

The optical sensor - that is emdedded into the hitting mat just in front of the normal hitting position - detects the ball shadow as it passes over it when struck

This opens a Gate for around 3 seconds that allows the trigger signal coming from the SX cam to get back to the Vcam and thus the ball will launch in the software.

Price: $ 249.00



"Optical Sensor Shot Detector"

installation instructions

1.Disconnect the RCA connector from the Vcam camera and connect it to the "Input" of the shot detector

2. Connect the "output" of the shot detectors back into the Vcam

3. Drill a 1/2 inch hole into the hitting mat about 1 inch in front of the normal tee position of the hitting mat.

4. Cut any grass fibers back around the hole so that none obstruct light from the overhead lamp from getting onto the senor.

5. From the under side of the hitting mat, align the sensor so that it appears in the center of the hole and screw into place from the under side of the mat.

Drill 4 small pilot holes for the sensor circuit board into the mat first

6. Connect the USB connector on the unit to a 5v USB adapter or into a USB port on the PC.

Note: The shot detector is not supplied with the 50watt halogen lamp. These lamps are already supplied with CX3, CX4 and PX systems but not for CX2 systems.

If using a CX2 system then a 50 watt halogen lamp will be additionally required. Mount on ceiling directly over the mat so that light gets down onto the sensor.

When all is connected only the red power light will be ON on the unit.

When an object is passed over the sensor, the yellow light will switch ON for around 3 seconds allowing any trigger signals coming from the SX line scan camera to get to the Vcam.

As long as the yellow LED light is not on, no trigger signal will get to the Vcam and thus no launch will occur. i.e. when walking around in the enclosure or retrieving balls.




New flash activation sensor in the trigger mat for CTS systems

The new CTS flash sensor prevents the CTS from triggering flashes during a club waggle or when teeing up

The CTS flash sensor detects a club back swing and only then allows the flash unit to fire within a 3 second time window

Other than preventing possible annoying flashes, the CTS flash sensor extends the life of the flash unit 10 fold

This sensor is emedded in the rear of the hitting mat.

Price: $ 349.00




Alternative CTS Line Scan Flash Controller

The optional extra CTS flash controller prevents the CTS from triggering flashes during a club waggle or when teeing up

The CTS flash controller is a line scan camera that detects a club back swing and only then allows the flash unit to fire for a 3 second period

Other than preventing possible annoying flashes, the CTS flash controller extends the life of the flash unit 10 fold

Price $ 399.00








12" * 12" fiber grass panels

Price $ 120.00 each

Currently not avaialble




Replacement PX2 front end fairway grass panel with pre-milled slots

Price $ 150.00






Rubber tee holders

Set of 3 : Price $ 25.00








Trigger mat sensor

Price $ 49.00 each





Replacement sensor for trigger mat

SFH 310 photo transistor

Price $ 0.70 cents

Click above image to purchase at www.mouser.com


Extracting a Vcam trigger signal from a PX2 circuit board

-

If you want to use a Vcam with an older PX2 sensor mat that doesn't have a "Trig Out" cable on it then you can add this yourself.

The "Trig In" on the Vcam is a RCA connector that has the trigger signal on the inner side and the ground on the outer side of the connector.

Using a regular RCA audio cable of suitable length (e.g 10ft), cut the connector off one end of the cable and strip the cable so that the signal and ground wires are exposed.

Wire/solder the signal part of the cable to the solder pad next to the HC14 IC that is behind the tee position (i.e. left center of the circuit board) as shown above.

Wire the ground to the GND pad at the top left side of the circuit board (or any other ground pad). You may have to either add a 6 inch extension to the signal wire or the ground wire on the RCA cable to achieve this.

Note that in order to access the circuit board, the grass panels and the acrylic glass plate have to be first unscrewed and removed from the sensor mat.

Lay and secure the RCA cable on the circuit board or casing so that it does not block any of the sensors. Run the RCA cable either out of the side or the front of the mat.

In the Vcam window of the Control Panel, set a trigger delay of around 10 ms so that the club is not in the Vcam's field of view when striking a ball.


Spin dot balls

Price $ 49.00 for 10

Please note: These spin dot balls only function with our Bcam, LX, VcamSpin or StereoSpin cameras.

Purchasing these balls for use without using these cameras is a waste of money as they will not help in detecting ball spin.






Miscellaneous upgrades and costs

Upgrade $500



Upgrade $400



Upgrade $300



Upgrade $200



Customer Online Purchase










full


All camera products Club Tracking Camera Ball spin camera Line Scan camera DIY Kits - Components Enclosures All products PX Systems Software Business Installation and setup
