GSA Golf develop and manufacture the world's most affordable, yet most advanced and comprehensive

hi-speed camera golf simulator tracking systems and golf launch monotors on the market today

Click above image to view YouTube videos

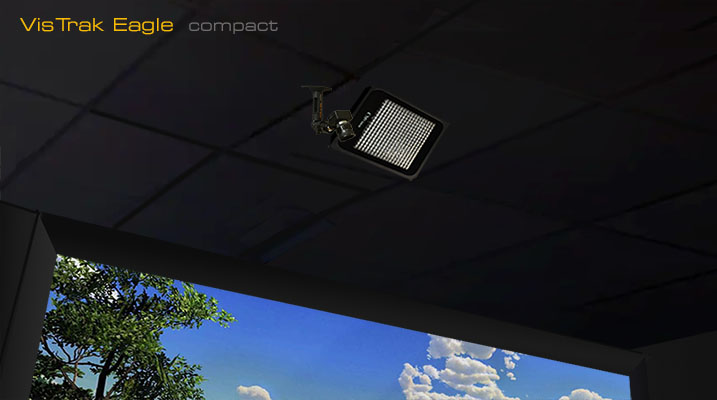

Ceiling mounted hi-speed camera Launch Monitor

No requirement to use club markings or specially marked balls !

VisTrak Eagle

1500 fps

ceiling mounted with lighting and software

Price includes 15ft USB 3 cable and 15ft USB3 extension cable for a total length of 30ft

IR LED lighting with high powered 648 IR LEDs

Price includes lens, camera mount, IR lighting, full version control panel software for use as a full club and ball tracking system

in a golf simulator.

System includes video swing playback camera system for shot analysis.

Golf course game software included

Dual IR LED lights included for monochrome frames

(US sales only - contact us for shipments outside the US)

System includes 2 IR LED lamps IR lighting for non-color monochrome frames

System includes Video Swing Capture software

Data captured: ball speed, ball path, club speed, club path, club face angle.

VisTrak Eagle1500 fps

$ 1,999

Cash price $ 1,699

Data captured: ball spin*, ball speed, ball path, club speed, club path, club face angle.

* clear ball markings and additional lighting required if measured and not calculated

Note:

Ball LA ( launch angle) is based on selected club loft and is not measured with this single camera system

A second camera is required for ball LA. You can add this second camera later for $599.

Note: Leadtime for the Eagle cased version is around 10 days.

Non cased version leadtime 24 to 48 hours

VisTrak Eagle - non cased

Camera and software only - without casing and lights

-

Just add your own IR or Halogen Lighting

Price $799

IR monochrome camera

Usually ships within 24 to 48 hours

VisTrak Eagle - non cased

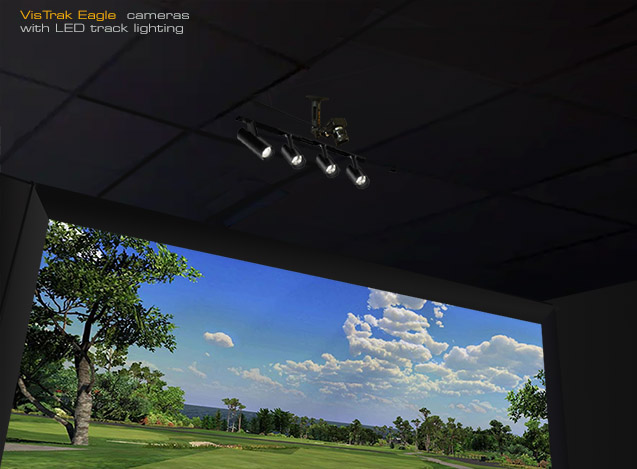

VisTrak Eagle with Halogen Track Lighting

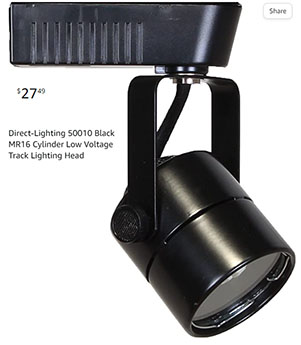

Instead of expensive IR LED lighting, you can also use Halogen track lighting.

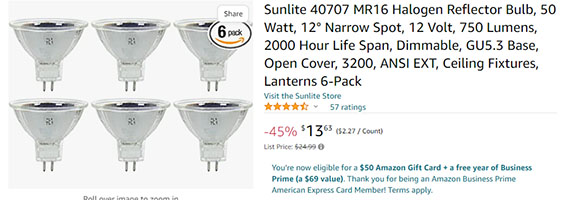

Use 50 watt narrow beam 12 degree halogen bulbs

A 3ft track with 3 spots and bulbs are available on Amazon for around $130

VisTrak Eagle with Halogen track lighting

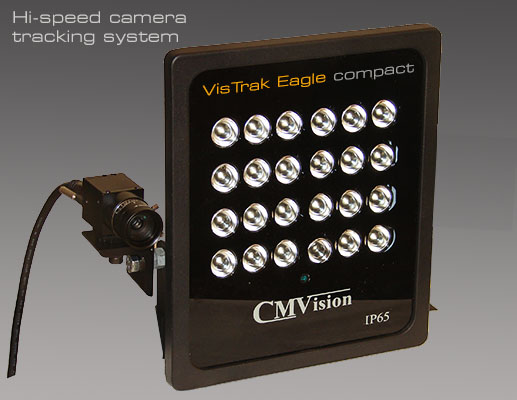

Hi-speed ceiling mounted camera tracking system

Functions with TGC, E6, CG3D and GS Pro game software

--

--

IR monochrome camera

Price $999

VisTrak Eagle

Color camera with Halogen track lighting

World's first and only hi-speed camera tracking system in color!

Color camera with Halogen track lighting

Price $999

Camera, IR LED Lights and software

Price $1,299

Cameras usually ship within 24 to 48 hours

LED lights usually ship within 7 days

Note: LED IR lights are available at a lower price on Amazon - see at end of this page for more info

Eagle Laser Pointer

Optional extra laser ball placement guide

Laser automatically switches off when ball is located.

Price $199

if ordered with the Eagle cased version

$ 299

if retro fitted to a product that didn't originally feature the laser

VisTrak Eagle Software

Software only - without cameras, casing and lights

Runs with E6, TGC, GSpro, CG3D and ProX game software.

Camera Control Panel and 18 hole course game software.

Purchase your own camera and lighting

Price $299

You can also add a second camera to the VisTrak Eagle

This will bring your system up to VisTrak SCXi, KXi or EVi specs

$ 799.00

Optional Ball markings

Ball spin is usually calculated from ball and club data so that you can use regular unmarked balls.

However, you can also use marked balls in order the view the spin in the shot video playback

and optionally choose that the system measures ball spin from the markings.

Note that in this case, the system will require additional IR or Halogen light in order to measure ball spin from spin dot markings on the ball.

Use 50 or 75 watt narrow beam halogen bulbs with track lighting

24 Bridgestone spin dot balls

$ 59.00

VisTrak SCX/Eagle ball spin calculation using ball markings

Spin calculations are being made over multiple frames.

i.e. not just the last 2 speed frames but all relevant frames of the ball in flight.

An average back spin and side spin is then calculated.

VisTrak AOA

AOA launch angle and club loft comparisons are shown

The red balls show what the launch angle would be if ball was struck square to the ball so that the LA would equal the loft of the club

The white balls show what the actual LA was for the shot.

Optional Club markings

One or two white strips can be applied to the leading edge of irons and the top edge of woods

in order for the system to detect more precise club face angle, speed and path.

However, the system will also function with regular clubs without these markings.

System is supplied with a set of white strips

Measured Ball Spin and Club detection without markings on balls and clubs

The new ASD and ACD software detects both ball spin and club data without markings

Note: Ball spin detection without markings requires the IR Xenon Flash

SCX Dynamic ROI (Region of Interest)

The Dynamic ROI feature allows the user to place the ball in a 2ft wide area on the hitting surface

For those that would like to use their own sourced cameras

VisTrak Eagle i / SCX i software

$ 299.00

VisTrak Eagle uses the same ceiling mount as the SCX

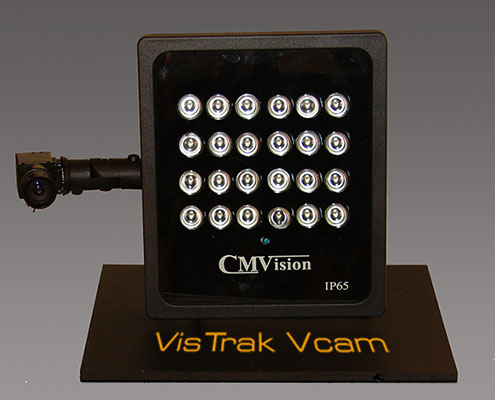

You can also add a Vcam vertical launch camera to the VisTrak Eagle.

Click above to watch a selection of setup and intro videos

System functions for both LH and RH players without having to move the unit.

The VisTrak Eagle features swing video playback from its overhead hi-speed camera.

Shot video playback is available after every shot.

Each captured shot video is stored in a database that can store up to 500 shot videos.

The new "Mini" shot videos are immediately displayed in the game software after every shot.

The video window can be positioned anywhere in the game software.

Click above images to see a YouTube video of the feature

--

Game software

GSA Golf 18 hole course game software included free of charge

Optional extra Game software

--

-

-

Click above images to learn more...

TGC 150,000 golf game software

TGC full version with over 150,000 courses $999

Single one time payment

Click above images to learn more...

E6 Connect golf game software

Click above image to learn more...

E6 Connect course software package $300 per annum

GS Pro game software

GS Pro $250 per annum

Click above image to learn more...

You can also add a second camera to the VisTrak Eagle

This will bring your system up to VisTrak SCXi, KXi or EVi specs

$ 799.00

Adding the second camera allows you to capture full hi-speed 32 frame shot videos from top and side mounted cameras

Non-cased camera systems vs. cased systems

-

Advantages of non-cased camera systems:

1. Straight off the bat, non-cased camera systems are almost half the price of cased systems

Reason: while it takes some 15 hours to assemble a cased system, a non-cased camera system takes only 15 minutes.

2. Non cased cameras are far easier to mount

The SCX total weight is over 15lbs and probably requires 2 people on a step ladder to mount,

whereas a camera only weighs a few ounces and can easily be mounted by a single person.

3. Non cased cameras are far easier to aim and focus adjust

Access to the camera's mount and lens focus dial is far easier if the camera is not cased.

4. Non cased cameras allow the user to swap cameras around in different configurations to change to different systems

For example, you can setup the cameras as an SCX, EVi, KX, or LX system simply by re-mounting the cameras and lighting.

In a cased system, the cameras and lighting are fixed for the particular system the case was designed for.

5. Fast lead and shipment times

While cased products can take well up to 4 weeks to ship, cameras are usually shipped within 24 to 48 hours.

6. No requirement to sign a sales agreement

As the value of just the cameras is a lot lower than the cased version, we can take the risk of selling the product without a sales agreement.

One of the many reasons for this is that fully cased products that weigh as much as 15 lbs can easily be damaged during transport

- seemingly no matter how well they are packed -

and often a return cased product is nowhere near as well packed and thus far more likely to be damaged.

End result is that we can get a damaged unsellable product back that results in a total loss for us.

Whereas the chances of single small and light weight camera being damaged during transport is almost non existent.

Advantages of cased camera systems:

1. Other than some may say they look better, I can't really think of any great advantage

VisTrak Eagle Lighting

If you have purchased just the cameras, the following IR lighting is required.

2 to 3 x CM Vision IRS324 850 nm IR Illuminators for the ceiling mounted camera

Available on Amazon for $79 + $20 for 5 amp CM Vision power supply

Alternatively 3 x CM Vision IR 200 - 850nm IR Illuminators

Available on Amazon for $69 with 3 amp CM Vision power supply

Note: these illuminators are - at the time of this writing - currently sold out on Amazon but are still available at CMvisionSecurity .com.

VisTrak Eagle with Halogen Track Lighting

Instead of expensive IR LED lighting, you can also use Halogen track lighting.

Use 50 watt narrow beam 12 degree halogen bulbs

A 2ft track with 4 spots and bulbs are available on Amazon for around $100

Other GSA Golf Vistrak systems

Click above to read more ...

You can also use the VisTrak Eagle as a floor mounted LX launch Monitor

Technical Support

Email and remote access support is available for all original purchasers of GSA Golf systems.

For all non original purchasers (i.e. purchasers of used GSA Golf systems) remote access support can be purchased separately.
