GSA Golf Simulator Impact Screens



GSA Golf screen materials for your Studio Enclosure

GSA Golf screen materials

Home theater quality premium screen image impact screens


Golf Simulator Impact Projection Screens

Custom Screens are made up and shipped next day !

Note: when ordering impact screens,

drop us an email stating what size (height and width) you require.

All screens are custom made to your size requirements.

Please note !

Screen sizes include the 2.5” edging and grommets that go all around the screen.

i.e. the size is not just the white part of the screen.

So take this into account when ordering your screen size.





GSA Golf standard material custom size impact projection screens with edging, grommets and bungee cords.

Note: max height of screen is 10 feet. When ordering call or send required dimensions via e-mail to us

Price incudes 50 bungee cords and all box frame fittings

Standard size for 4:3 ratio is W 12ft x H 9ft

Wide screen size for 16:9 ratio is W 16ft x H 9ft

Recommended : use 15'x9' so that you can swap between standard and wide screen depending on your projector

Note! Custom sizes can be made to order at no extra cost

Price includes screen valance rolls !

Note! All screens are supplied with the above shown frame fittings but we don't supply the EMT conduit tubing as freight shipping these inexpensive items is too costly

1inch diameter EMT conduit piping is available at all good hardware stores (Lowes or Home Depot etc) for around $8.00 per 10ft length.

You'll need 13 of them for the complete box frame. See further below for the HomeDepot link for these pipes.

Frame size to Screen size

The frame should be around 2 inches per side greater than the screen size.

i.e. if the screen size is 12 ft x 9 ft (144" x 108") then the frame should be 12ft 4" x 9ft 4" (148" x 112").



Standard screen

Price for 15'x9' (or any custom size) standard screen material impact screen : $ 799.00 with box frame fittings (8 X F3, 2 FT and 2 F4)

Preferred screen

Price for 15'x9' (or any custom size) preferred screen material impact screen : $ 1,099.00 with box frame fittings (8 X F3, 2 FT and 2 F4)

Premium screen

Price for 15'x9' (or any custom size) premium screen material impact screen : $ 1,399.00 with box frame fittings (8 X F3, 2 FT and 2 F4)

Home theater quality premium screen image impact screens

Note that premium impact screens cannot be shipped folded and so are shipped on a roll.

Custom Screens are made up and shipped next day !

Aspect ratios

Most projectors can do at least 16:9 aspect ratios these days

Screen size chart

Use this screen size calculator to calculate your desired screen size




Solid wall & cage frame enclosures

Click on the above images to read more about solid wall and cage frame enclosures


Screen valance

The screen bungeee cords and tubing are covered with a screen valance made of a number of 12ft x 8 inch wide black fultron strips

These thick black Fulton lengths are ideally suited for screen valances and give the screen a professional finished look

Set of 4 black Fulton rolls (48 ft) for screen sizes up to 15 ft wide and 9ft high

$ 199.00







How to mount the screen Valance rolls

Pierce 2 holes close to each other in the center of the material.

For the screen sides left and right, pierce the holes vertically. i.e. one lower and one higher in line with each other

For the screen bottom and top, pierce the holes horizontally. i.e. one next to the other in line with each other

Thread a black cable tie through the hole and tie to the screen bungee cords from behind.

Repeat the procedure every foot or so for each side of the screen

Velcro strips may also work.

The hook side of Velcro attaches well to the fluffy side of the rolls but not the smoother side.

The strips would have to be sewn into the rolls if the fluffy side is to be outside.


Track drape enclosure screen mounting on the box frame

All screens are supplied with tube box frame fittings

The box frame is self standing but can be fixed to the floor and/or rear wall using 1 inch diameter tube clamps

Note! All screens are supplied with the above shown frame fittings but we don't supply the EMT conduit tubing as freight shipping these inexpensive items is too costly

1inch diameter EMT conduit piping is available at all good hardware stores (Lowes or Home Depot etc) for around $8.00 per 10ft length.

You'll need 13 of them for the complete box frame.

Frame size to Screen size

The frame should be around 2 inches per side greater than the screen size.

i.e. if the screen size is 12 ft x 9 ft (144" x 108") then the frame should be 12ft 4" x 9ft 4" (148" x 112").

The screen box frame assembly is quite straight forward but does require a little bit of effort and measuring

Start by cutting the conduit EMT piping to suit your screen size width and height and the EX pipes to suit your box depth requirements (usually from 1ft to 4ft).

The conduit pipes come in 10ft lengths so for a 12ft wide screen, the horizontal pipes

(HLB 1, HLB 2, HLF 1,HLF 2 and HUB 1, HUB 2, HUF 1 and HUF 2)

will be cut to 6ft each and for a 15ft wide screen they will be cut to 7.5 ft lengths each.

Build up the box frame as shown in the above image. Start with the floor level horizontal pipes and fittings,

then attach the vertical (VB 1, VB 2 and VMB ) pipes

and finally the upper level pipes and fittings HUB 1, HUB 2, HUF 1 and HUB 2.

Once the box frame is made up, you can start attaching the screen using the supplied bungee cords.

(see below on how to mount the screen with the bungee cords)

If you find that the box frame is slightly too small then you can extend the tubes an inch or two out of the fittings to suit.

If the box frame is too large then the pipes will have to be cut down in length to suit.

For added stability you can secure the frame to the floor and/or back wall with 1 inch diameter pipe clamps.

Buy 1 inch diameter conduit pipe directly from Home Depot with delivery by clicking on the above image

You'll require 13 lengths for the box frame screen frame

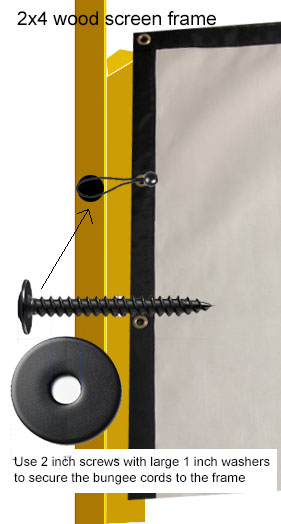

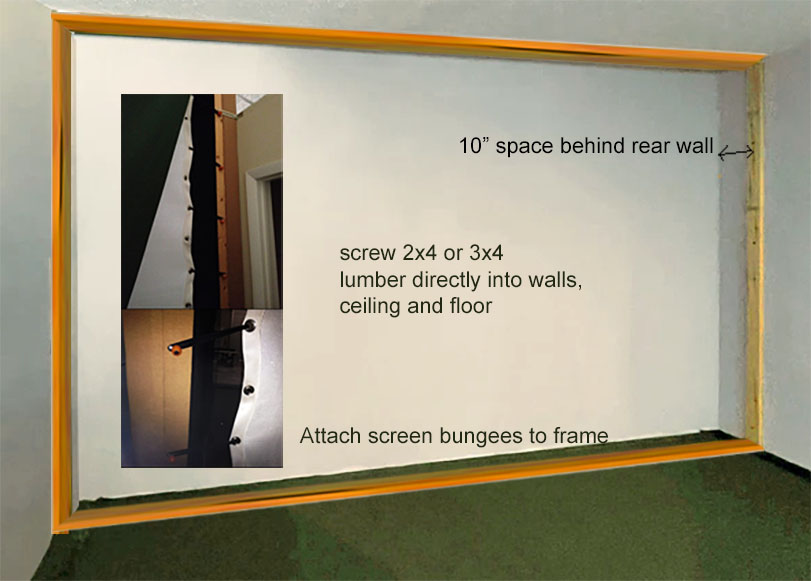

Alternatively the screens can be mounted without a box frame directly to the floor and ceiling using clamps, hooks and bungee cords

You can also mount the screens like this without a screen frame but note then that there will be no side tension on the screen so some waving might appear in the screen

Mounting screen using rear extension frame only


How to mount the screen to the frame with the bungess

Insert the bungee cord through the grommet hole from behind the screen.

The ball now touches the backside of the black vinyl border.

Pull the cord over and around the frame/or 1" EMT pipe.

Lastly, loop the cord over the ball behind the screen.


Curved screens

If you'd like a curved screen then you can use the standard frame pipe fittings with bendable nylon A and B rods

Quote from "www.draperinc.com"

Curved projection screens offer several key advantages over flat projection screens.

A curved screen helps offset pincushion distortion from a horizontal expansion lens, and also wraps the image around your periphery more than a flat screen for greater engagement with your projected image.

In addition, the curved image is subject to less ambient reflected light from your room, while your projector’s light is more accurately reflected by the perfectly smooth viewing surface for an ideal picture.

The amount of curvature is determined by the length of the "A rods" whereas the width of the screen is determined by the two "B rods"

"A rods" would normally be in the 3 ft range and "B rods" in the 7.5 ft range for a total width of 15 ft

Note that other golf simulator manufacturers would charge you an arm and leg for curved screens (upwards of $10,000 !)

Our price for a 15 ft wide, 9 or 10 ft high curved screen with double grommets, bungees and fixtures (excluding EMT tubing but including the A and B rods)

Premium (home theater quality) custom size (up to 16ft wide) 3 layer curved screen

Contact us with your screen size requirements

Price just $1,699









Note that the upper A and B rods for curved screens will probably require extra lift support to prevent sagging.

The above ultra strong cable ties with ceiling hooks (supplied) will provide sufficient support to prevent any sagging

Click the above image to read more about warping your images to fit the curvature of the screen


Golf Simulator Impact screens on a track

If you need to use your golf simulator room for other uses and don't want a fixed impact screen

then try our impact screens on tracks.

Just slide away when not in use.




-- -











Golf Simulator Projectors

Click above to read more about Projectors
