GSA Golf simulators are available in 4:3 or 16:9 (wide screen) formats

All our F series golf simulators and enclosures are custom made

to fit your available room size and desired format !

Tired of finding your ideal golf simulator on the Internet but only to find that the starting price is a crazy $49,000 ?

Your problems are solved with our new F series state-of-the-art all camera based full system golf simulators.

No other golf simulators on the market come even close to our F series even at 4 times the price !

Warning!

Please note that GSA Golf camera systems are not plug 'n' play and may require some time to setup.
While most relatively tech savvy users have no problem setting up their camera systems in a day or so,
others - with lower technical abilities - may require a considerable longer time to setup the systems
and require extensive and time consuming remote access support that may extend over many weeks and months.
If in doubt - and to avoid frustration - we recommend not purchasing any of the below listed products

Warning to contractors and commercial

If you are purchasing our system on behalf of a client, be aware that the customer will be required
to learn how to operate the system (in case of issues) which may take some time and patience.
Likewise, if the system is to be used in a commercial environment like an indoor golf center,
at least one person with a good working knowledge of the system should be present at all times in case of issues.
If in doubt - and to avoid frustration - we recommend not purchasing any of the below listed products
Issues are usually simple things - like a camera or light being moved - but without knowledge of the system,
fixing the problem will be near impossible for the user and will require them to call for technical support.

GSA Golf - World class golf simulators you can afford

GSA Golf make world class golf simulators for a 1/4 of the price of our competitors

GSA Golf full version golf simulators start at just $5,995

while our competitors start at a crazy ~~$ 49,000~~

Tracking systems

PX Optical systems from $1,499 ! CX Camera systems from $2,699 !

Stereoscopic ball tracking systems from $3,499 !

CX Surround systems from $3,499..................................VisTrak high speed camera systems from $995 !

VisTrak's swing playback videos show your club path, speed and face angle plus ball speed and direction

Using 3 CX (Vcam, Hcam and Ccam) cameras for both club and ball tracking

Using the VisTrak high speed camera system for ball and club tracking

with video swing playback

Data captured: Ball speed, ball path and launch angle plus single camera club tracking (Ccam or VisTrak)

System detects fades, draws, hooks, slices, pulls and pushes

Our competitors price ~~$ 35,000 to $ 49,000~~

F2 with VisTrak all camera ball and club tracking w/o PC and only 15 course TGC software $ 5,995

F3 with CX3 all camera ball and club tracking w/o PC and only 15 course TGC software $ 9,995

F3 with CX3 all camera ball and club tracking w. PC & full version E6 (15 courses) or TGC (150,000 courses) software $ 12,995

While the F3 comes with wood transition trim between the flooring and grass turf carpet

the optional raised walnut platform - as shown above - costs an extra $ 2,499

click the above for more information on the Walnut platform flooring

Buy the F2 or F3 GSA Golf Hi-end golf simulator here

Note that when choosing the CX3 tracking system with camera club tracking cameras, tracking dots need to be applied to the clubs.

If this is not suitable then choose the F3 with PX5 optical sensor club tracking that doesn't require any tracking dots

The F3 includes both the E6 and the TGC golf game software

Note: If ordering with E6 15 course software then the TGC software supplied is also limited to 15 courses.

If ordering without the E6 software then the supplied TGC has over 150,000 courses.

Our recommendation:

order without E6 and TGC full version first.

Then try the free supplied TGC 15 course software and download the free 30 day trial E6 software.

Only after trying both E6 and TGC, make the final decision as to which game software you prefer.

Free additional game software: RedChain and ProX (Prox available later in 2019)

Is the GSA Golf F2/F3 Simulator at a starting price of just $5,995 too good to be true ?

No ! And here is how we do it:

The main reason why GSA Golf products are so inexpensive when compared to others that are selling in the $30,000 to $70,000 range is because:

1. GSA Golf have no financial investors that are demanding big fat returns on their investments,

2. we only sell factory direct Online and not via resellers that want big 50% to 100% markups,

3. We're not having to pay for big endorsements from top golf professional players that mean effectively nothing and cost millions of dollars

- which you as a purchaser are paying for in the price -

4. we spend very little money on advertising that would also have to be added to the price

5. all our system development is done in-house - i.e. we're not outsourcing any development that would cost many hundreds of thousands of dollars

6. we operate ourselves on very lean and small margins.

For us, golf simulators are as much a passion as a business and not just a way to get rich quick.

The F3 to F4 golf simulator upgrades are:

1. 4K projector - $ 1,700
2. E6 Connect 4K software - $ 2,500
- TGC 150,000 course software included -
3. CX4 Surround VisTtrak quad camera tracking - $ 2,000
4. Upgraded PC graphics and USB cards - $,500
Total upgrade price - $,6,700
F3 price - $ 12,995
F4 price - $ 19,695

including high end i7 PC, 23 inch touch screen monitor on stand and projector but without any tracking system or software.

The F-Studio is for customers that will be using their own sourced tracking system

The F-Studio is custom made to fit your size requirements. 4:3 standard screen ratio or 16:9 wide screen ratio

the max carpeting width we can supply is 12ft, so carpeting for enclosures that are wider than this

Click the above image to read more about our camera based ball and club tracking systems

The below listed components are - in addition to the tracking system - included

Hi-end Computer with touch screen, 3000 lumens Projector, all cables and lighting

If using our camera systems then the special (low reflective) turf carpet we use roll width is only 12ft.

This means that if you want a greater width than this (e.g. 16ft wide) then extra pieces will be shipped to make up the full width and there will thus be joins.

Custom size high quality 3 layer premium impact projection screen with bungee cords

Note: The 1inch diameter conduit steel required to build the frame is supplied by Home Depot.

If you do not have a local Home Depot store near you then they will not offer shipping.

All F series golf simulators from F3 upwards include simulated rough and sand surfaces

The F3 uses an all camera ball and club tracking system that allows the user to photographically verify the data being captured.

The F3 uses either the Ccam camera club tracking system or the PX1 optical sensor club tracking system.

For those that don't wish to use cameras to capture club data - that requires tracking dots to be applied to the clubs -

we offer the PX1 optical sensor club tracking mat as an alternative that doesn't require any tracking dots to be applied to the clubs

1. i7 Gaming PC with 23 inch touch screen monitor with 400watt sound system), mouse, keyboard and 3ft or 6ft HDMI cable
-
2. PC monitor stand
-
3. Optoma or ViewSonic 3200/3500 lumens projector with 15ft HDMI cable and projector mount
-
4. HDMI splitter box (to connect both monitor and projector to the same PC graphics port)
-
5. Turf padded flooring (custom size but usually 12 X 15 ft)
6. Turf floor Walnut wood transition trim (42ft) -- Note: US delivery only!
7. Impact screen ( premium 3 layer - custom size but usually 12ft w X 9ft h or 15 X 9ft)
with the following screen frame fittings: 8 x F3 + 2 x FT + 2 x F4
see the Impact Screen page for details Impact Screen
All 1 inch diameter metal EMT/conduit frame piping is included (140ft)
8. 2 X Black heavy - light and sound absorbing – 10ft wide wall drapes on tracks with grommets, hooks and rollers.
Size is usually 10ft deep by whatever the customer’s ceiling height is – normally 9ft or 10ft high
9. Ceiling drape to match screen width
Size is usually 10ft deep by whatever the customer’s screen width is plus about 2ft extra - normally 14ft to 17ft
10. 4 X screen valance rolls with cable ties
-
Optional extras:
1 : Curved screen 4 X A and 4 X B rods with ceiling suspension hooks and ties
2 : Left and right stance mats ($516)
3: Lux camera casing
What's not included :
Raised flooring,
stance mats ,
LUX camera casings,
canopy (ceiling drape - which is included - replaces a canopy)
F Series golf simulators with raised platform flooring - Add $2,499
Click the above button to read more about raised flooring and stance mats
Lux AIO casing ( add $699 per camera for these casings)

Contact us to add the Lux casings to the invoice

CX Surround casing for stereoscopic dual camera ball tracking

Add $1,000 camera for this 7ft wide case option

Contact us to add the CX Surround casing to the F3 golf simulator
Add a further $1,500 for the CX4 Surround - which adds the Bcam ball spin camera.
Stance mats
Stance mats can be used instead of raising the floor so that you are standing at the same height as the hitting surfaces
Add 2 (left and right) 4' x 4' stance mats for $516

All systems are custom made to fit your size requirements but sizes shouldn't be much less than the minimum sizes as stated above.

If cameras are mounted closer to the screen than 5ft then light reflected from the screen will / may get into the line scan camera and thus won't function correctly.

It may be possible to mount the cameras a bit closer than this but we cannot then guarantee that the system will work

Click above (left image) to read more about base monitor stands Note: Standard monitor stand included on all F-series models (image right).

If you are not wanting to raise the flooring but still want the hitting mats to be at the same -or very near - the level as the flooring

Dual lane hitting surfaces for Left / Right handed players not playing down the center line.

If your enclosure width is too small for you to always play the ball down the center line of the enclosure

All GSA Golf PC's come with a 24 inch touch screen monitors and PC/monitor stand

The GSA Golf Control panel can be installed on multiple PC's and monitors so that you can view all data simultaneously

Note that most of our competitors offer just one game software package, whereas we offer 5 !

All our F systems come complete with the latest E6 1.6 15 course software and/or The Golf Club 150,000 course software

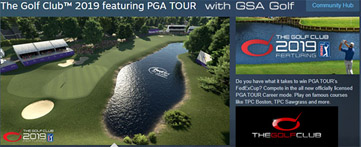

Click above image to go to The Golf Club software with stunning graphics and over 150,000! golf courses for just $999
