Launch Monitor
EVi ?
The E stands for Eagle, V for vertical camera, I for SSi (Super Speed Inovation) cameras
Our most accurate and comprehensive camera tracking system
Click above image to view YouTube videos
Try it before you buy it
GSA Golf Control Panel Full version download
Use the above download to install the full version Control Panel with sample shot videos.
Download includes sample shot videos of the SCX, EVi and LX2 systems

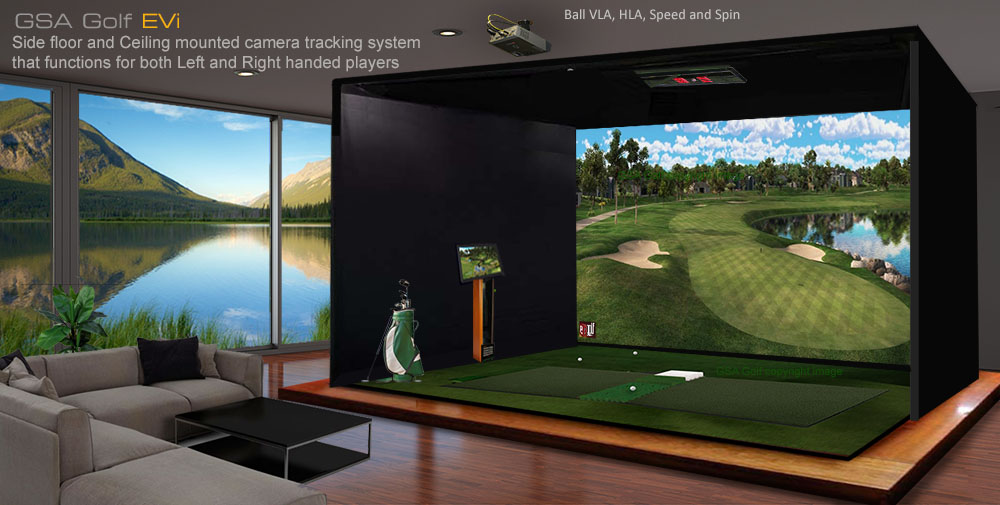

The new VisTrak EVi golf launch monitor combines the overhead mounted VisTrak Eagle
and a floor mounted Vertical launch Vcam camera.
The VisTrak EVi captures full 32 frames of the shot viewed from both the overhead and side mounted cameras.
VisTrak EVi

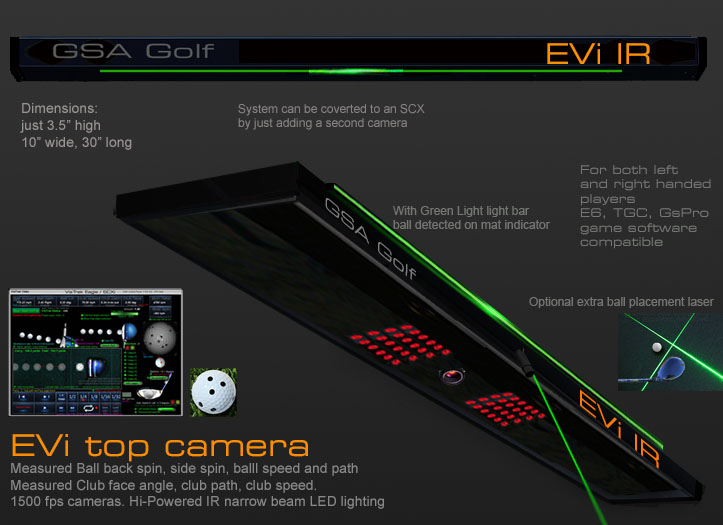

The EVi top camera is a VisTrak Eagle

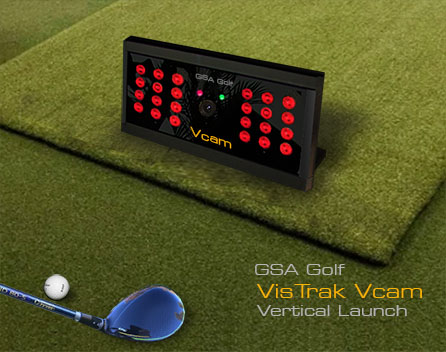

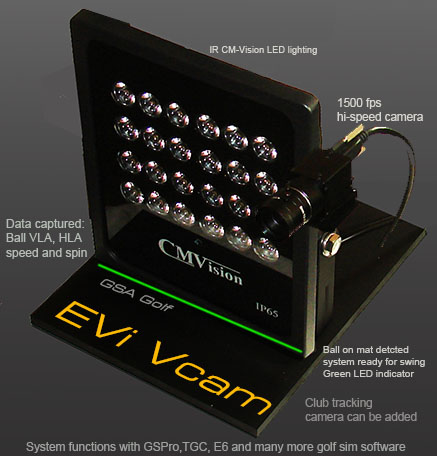

The EVi floor Vcam camera is a VisTRak LX1
The short distance Vcam is placed around 12 inches away from the ball
The long distance Vcam is placed 4 to 8ft away from the ball
$ 2,999
VisTrak EVi Lite
$ 2,499
Same as the regular EVi except without the laser and LED green strip indicators
Note that each EVi system is hand built to the highest standards of manufacture requiring some 16 hours to assemble, test and calibrate before shipping
Dual camera angle 32 frame shot videos
The new GSA Golf EVi and KX systems feature dual hi-speed camera 32 frame shot playback videos
from both the top and side cameras after every shot
World's first and only camera tracking system with dual camera angle 32 frame shot playback videos
To the best of our knowledge, the VisTrak EV and KX systems are the only systems on the market
that feature dual 32 frame shot videos from both the top and side view cameras after every shot.
The new "Mini" shot videos are immediately displayed in the game software after every shot.
The video window can be positioned anywhere in the game software.
The VisTrak EVi cameras run at 800 to1500 fps with dual swing playback videos after every shot
Select "Top Camera" to view a 32 frame captured video of your shot as viewed by the overhead mounted top camera.
The Top View camera measures ball speed and path plus club face angle, speed and path.
Select "Side Camera" to view a 32 frame captured video of your shot as viewed by the side mounted camera.
The Side View camera measures ball vertical launch angle and and full 360 degree measured ball spin using just the ball's logo

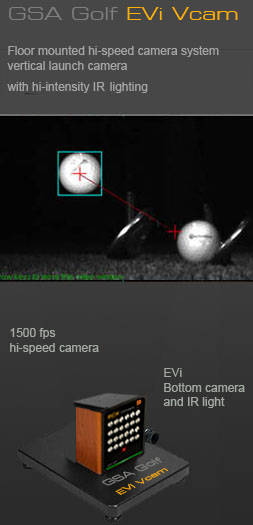

The Vcam camera also runs at 800 to 1500 fps with full video swing playback after every shot
There are thus two 32 frame videos available for the user to view after a shot.
1. from the overhead camera
and
2. from the floor mounted side view camera
The additional Vcam 32 frame shot video will show how the ball was struck by the club as viewed from the side in slow motion.
The Vcam video shows club angle of attack and where the club made contact with the ball. i.e. fat, thin or ideal.
EVi putting

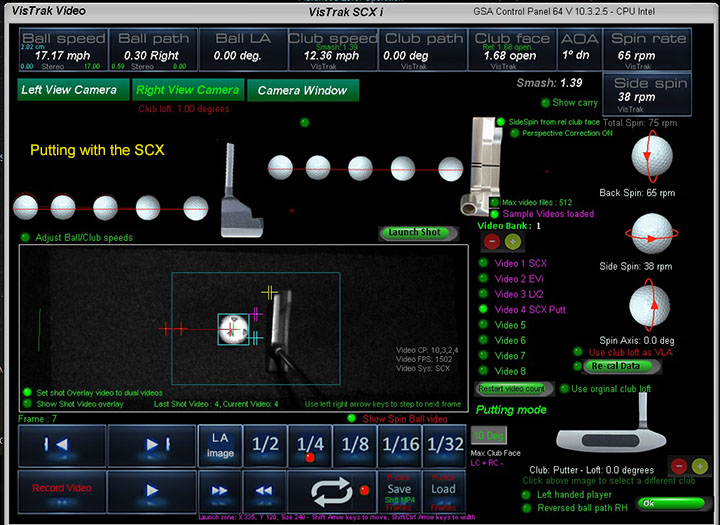

The SCX and EVi systems detect all putts and captures all putting data too.
see the example putting video in the sample videos of the Control Panel
VisTrak EVi Ball Spin Detection
Ball Spin Detection from the Side camera
When the EVi Vcam is placed close to the ball (i.e within 12 inches), the camera detects ball spin rate using either the ball logo or ball spin dots.
The Vcam with EVi systems views the ball from the side.
Rotation - when using spin dot balls - is calculated around the center of the ball between frames
New spin detection method for side mounted camera systems (i.e. EV and LX)
Using balls with dots on them
Using balls with a line on them
Using Taylor Made PIX balls
Using just the ball's logo
Ball Spin Detection from the overhead camera
Ball spin can also be measured from the EV overhead camera
Rotation and spin axis is calculated by comparing x and y spin dot deviation positions between frames
Club Detection Setup
with or without reflective stickers
Click above to read how the system detects club data with or without reflective stickers
VisTrak EV layout configurations
The Standard VisTrak EVi Far system layout functions for both LH and RH players without the requirement to move cameras,
and detects all data except measured ball spin.
Ball spin is calculated from the captured club data
When mounting the cameras in the EVi Close configuration layout
(either 2ft away with 6mm lens or 6 to 9ft away with 12 mm lens),
ball spin is measured but the floor mounted camera has to be moved if swapping LH and RH players.
Portable EVi system
The VisTrak LX2 is a portable version of the EVi system
Click above to read more about the LX2
This method c
Laser Ball Placement Indicator

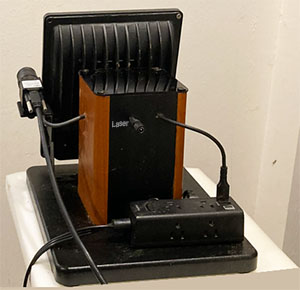

The VisTrak EV comes with the Laser ball placement indicator
Laser automatically switches off when ball is located.
Indicates to user that the ball has been detected in the launch zone area on the mat and ready for swing
Build the EVi yourself
Total DIY price: $1,090
Just add your own IR LED or Track Lighting
EVi Software only - without cameras and lighting
EVi Control Panel and 18 hole course game software.
Purchase your own hi-speed 1500 fps cameras and lighting on Amazon
Compatible with GSpro, TGC, E6 connect and CG3d game software
Price $299
System captures LA for both LH and RH players without having to move the unit.
The VisTrak EVi has all the usual VisTrak Eagle features with swing video playback from its overhead hi-speed camera.
Shot video playback is available after every shot.
Each captured shot video is stored in a database that can store up to 500 shot videos.

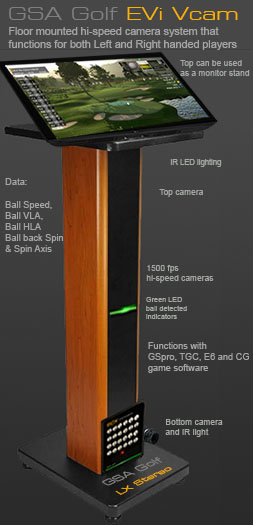

The VisTrak EVi Vcam detects exact vertical launch angle from its high speed side mounted camera.
A 32 frame Vcam video playback can be viewed after every shot from the side mounted camera
in addition to a 32 frame video from the overhead camera.

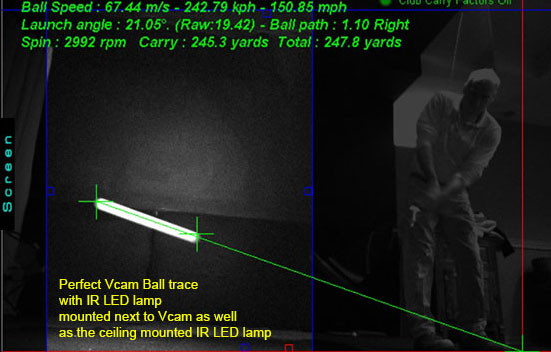

The above image shows a Vcam shot when the Vcam camera is placed 4 to 9 ft off to the side.
When the EV Vcam is placed close up (1.5 to 2ft) to the ball,
spin rate can be detected from the ball's logo so that no speacial marked balls are required.
Ball Spin Setup
Click above button to read how setup ball spin detection
Optional Ball markings
To save you from having to bend down and place the ball so that the ball's logo is facig the camera for every shot,
you can use marked spin dot balls.
24 Bridgestone spin dot balls
$ 59.98
Optional Club markings
One or two white strips can be applied to the leading edge of irons and the top edge of woods
in order for the system to detect more precise club face angle, speed and path.
However, the system will also function with regular clubs without these markings.
System is supplied with a set of white strips
Game software options
Click above images to read more ...
GSA Golf VisTrak cameras function with all the above golf simulator course software
The EVi system can also be converted to a Video Swing Capture SC system
simply by swapping out the lenses and repositioning the cameras
The SC systems also measures ball data for use as a launch monitor for golf simulators
Click above image to read more...
Other GSA Golf Vistrak systems
Click above to read more ...
VisTrak camera setup videos
Click above image to view all VisTrak setup YouTube videos
Accuracy
VisTrak vs GC2 comparison results
Just in from independent tester Phil in the UK that has a GC2 and is running comparison tests with his VisTrak system
Putting
Vistrak 12.99 mph, GC2 13.0 2 mph
Vistrak 6.36 mph, GC2 6.0 3 mph
Vistrak 16.5 mph, GC2 17.3 mph
Chipping
Vistrak 49.73 mph, GC2 49.2
Full shots
Vistrak 80.37 mph , GC2 78.9 2 mph
Vistrak 78.63 mph , GC2 79.8 3 mph
Vistrak 87.22 mph, GC2 88.0 mph
GSA Golf system minimum PC requirements
-
Intel i5 or above Processor
Warning! Do not use PC's with AMD processors.
8GB RAM Nvidia 1070 Graphics Card or equivalent
25GB of Hard Drive Space
Windows 10 or 11 (Required)
Internet Connection
(Required if using 3rd party game software such as E6, TGC or GSPro)
2 X USB3 ports (Required)
Note: The cameras are USB3 cameras
and will only run at the correct speed when connected via USB3 cables directly to separate USB3 ports on the PC
Warning
If using 2 cameras, do not connect the cameras together with a Hub !
All cameras must be directly connected to separate USB3 ports on the PC
Use only powered USB3 extension cables if the supplied cables are not long enough
Warning : Do not use Laptops
Laptop PCs are usually not powerful enough to run the cameras due to the limited band width of the USB 3 bus in laptops
and the gaming software (i.e. E6. TGC, Gs pro etc)
as the demand on the graphics card will be quite great and updating graphics cards on Laptops may not be possible.
Technical Support
Email and remote access support is available for all original purchasers of GSA Golf systems.
E-mail support is free of charge for all original purchasers of GSA Golf systems.
Remote access support is available for all purchasers for $75 per session (max 1 hr per session)
Note that your 1 hour session can be divided up to 2 sessions of 30 min or 4 15min sessions
Remote support sessions are available 7 days a week (including weekends i.e. Sat or Sun) at 2pm ET
Remote access support requires that you have "TeamViewer" installed on your PC
Go to www.teamviewer.com to get your free team viewer installed
Buy GSA Golf remote support 1 hr session for
Price: $ 75.00
Warranty and Return Policy
Warranty is 1 year for the cameras
Returns must be made within 30 days and have a 15% to 20% restocking fee
Please read our legal notice via the link below regarding warranty periods and return policy
Note that a 15% to 20% re-stocking fee (depending on condition) will be charged in the event of a return
Customer is required to return the product at own expense. ie, GSA Golf do not send free return labels
Note: this 30 day return policy does not include 3rd party game software such as TGC,
enclosure items such as screens, flooring, drapes, panels etc.
i.e. it is solely for camera tracking systems
Please read our legal notice via the link below regarding warranty periods and return policy
Commercial use of GSA Golf tracking systems
GSA Golf VisTrak tracking systems are solely intended for use for private individuals at home.
As such, GSA Golf is not responsible for any issues that may occur when the products are used in a commercial environment
such as an indoor golf facility
and do not accept any responsibility for loss of business should the products not perform to customer's of a commercial enterprise expectations.
Use of GSA Golf products in a commercial environment is solely at the risk of the purchaser.
While all basic technical support is offered to purchasers of GSA Golf systems used in a commercial enterprise
no additional support is offered unless paid for.
Recommended system for commercial indoor golf facilities
By far the best tracking system for commercial use is the ProTee VX
Click the above image for more info
