GSA Golf: Curved Screens

If you'd like a curved screen then you can use the standard frame pipe fittings with pre-curved A and B rods

Quote from "www.draperinc.com"

Curved projection screens offer several key advantages over flat projection screens.

A curved screen helps offset pincushion distortion from a horizontal expansion lens, and also wraps the image around your periphery more than a flat screen for greater engagement with your projected image.

In addition, the curved image is subject to less ambient reflected light from your room, while your projector’s light is more accurately reflected by the perfectly smooth viewing surface for an ideal picture.

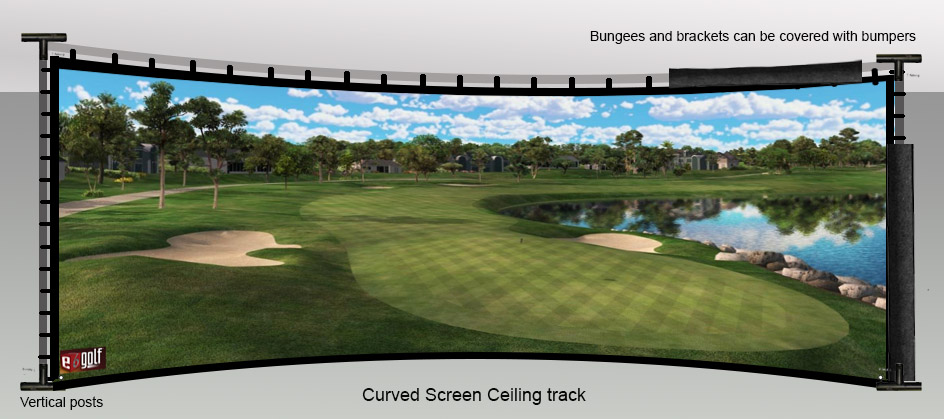

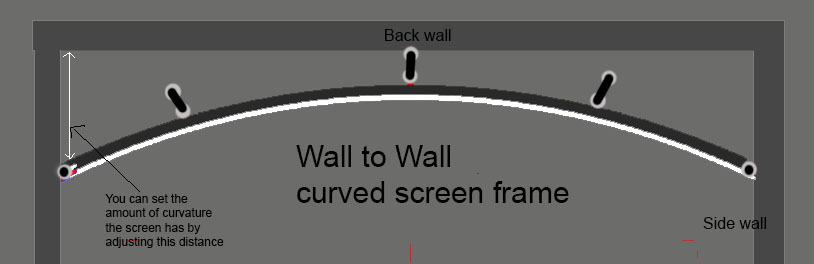

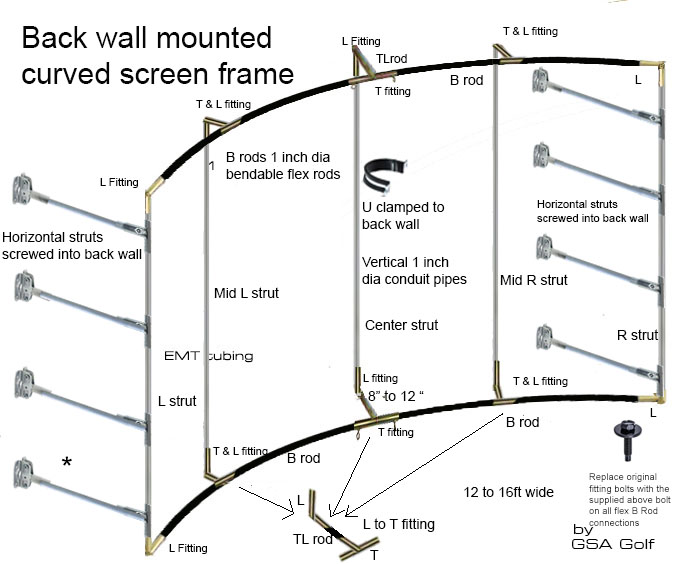

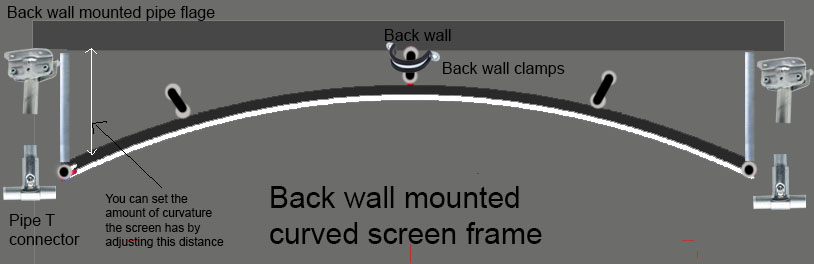

The amount of curvature is determined by the length of the "A tubes" whereas the arc length of the screen is determined by the two "B tubes"

"A tubes" would normally be in the 3 ft range and "B tubes" in the 7.5 ft range for a total width of 15 ft

Note that other golf simulator manufacturers would charge you an arm and leg for curved screens (upwards of $10,000 !)

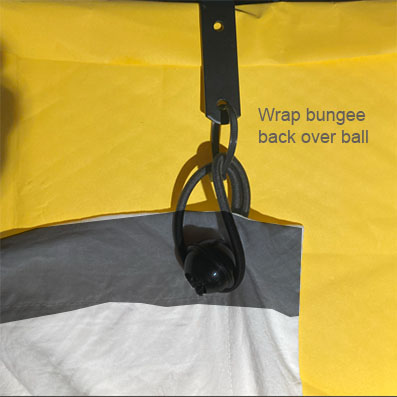

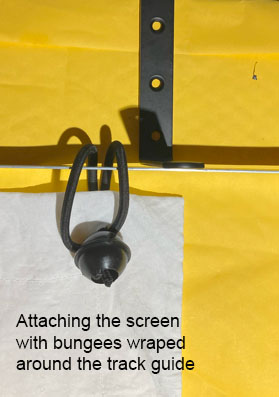

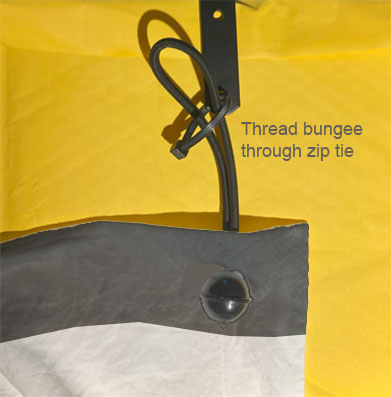

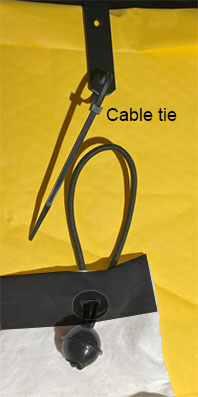

Our price for a 15 ft wide, 9 or 10 ft high curved screen with double grommets, bungees and fixtures (excluding EMT tubing but including the A and B rods)

Premium (home theater quality) custom size (up to 16ft wide) 3 layer curved screen

Curved Screen Tubing set

Pre-cut curved screen custom size 19 Tubing set

$ 999.00

freight shipping for tubing (80 lbs) at least $200 depending on your location

New "A" tube variable angle connector allows you to

adjust the amount of curvature your curved screen willl have

Budget Curved Screen tubing and rods

Set of curved A tubes and B rods only

While the straight conduit piping can easily be sourced from local hardware stores,

the specialized curved screen A tubes and B rods are not available in stores.

This set of 4 x A and 4 B rods solves the problem.

$ 649.00

Premium curved screen price including tube set

$ 1,899.00

Pre-cut and bent EMT pipes included - screen size up to 16ft wide and 10ft high

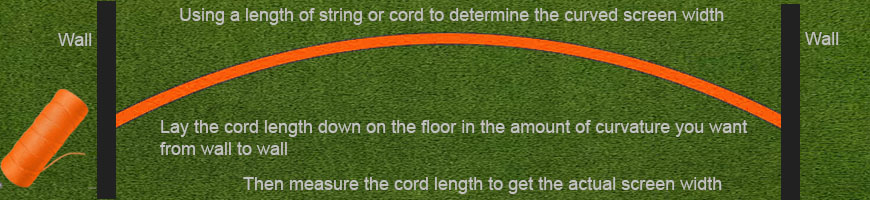

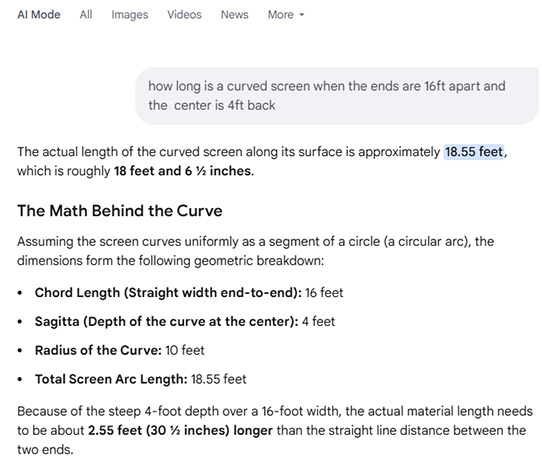

How to calculate the actual screen width

for a particular screen curvature depth or angle

Using the above online calculator you can determine the actual screen width for a particular screen curvature.

If you know the width of the available space for the screen

"Width of Arc"

and you know how far out the two far sides will extrude compared to the center of the screen

"Height of Arc"

then the actual screen width will be

"Length of Arc"

Purchase just the conduit tube fittings for curved screens

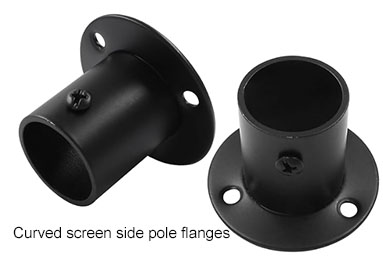

Set of 24 curved screen frame tube fittings

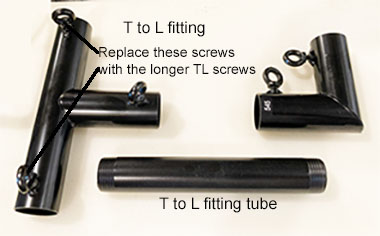

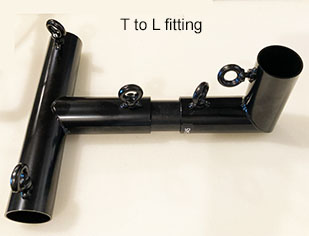

4 C + 8 F3 + 4 F4 + 4 T + 4 L

$ 599.00

Note: this is just the frame fittings.

You'll still require the 11 x 1 inch diameter conduit tubing from your local hardware store.

Plus 4 curved A tubes + 4 B flex rods

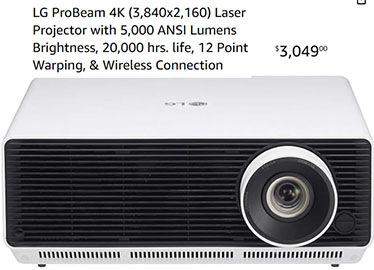

Please note that a curved screen will require special additional software

for the image coming out of the projector to also curve and match the curvature of the screen.

This software is $100 extra

Click the above image to read about curved screen warping software

New GSA Golf enclosure parts selection

Click above image to read more...

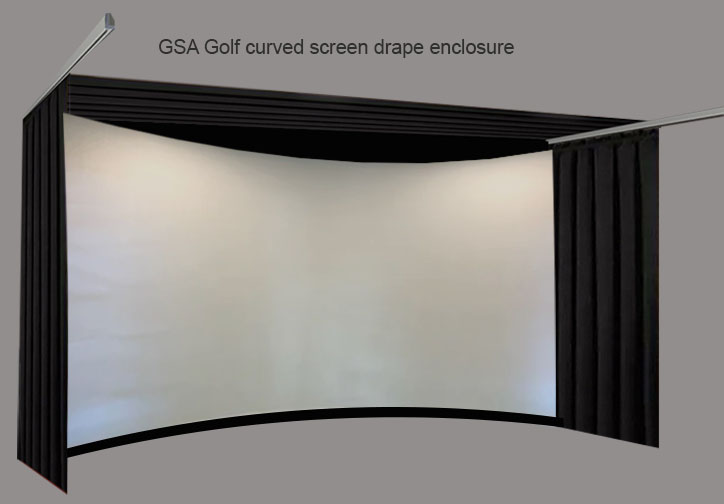

Curved screen enclosures

10ft deep curved screen enclosures

16' to 20' wide - 9' to 10' high - 10ft deep

with premium 3 layer screen plus side and ceiling walls

plus all tubing and tube fittings

$ 4,499.00

Carl's Curved Screen Enclosures

We also stock the new Carl's curved screen enclosures

Click above image to read more...
